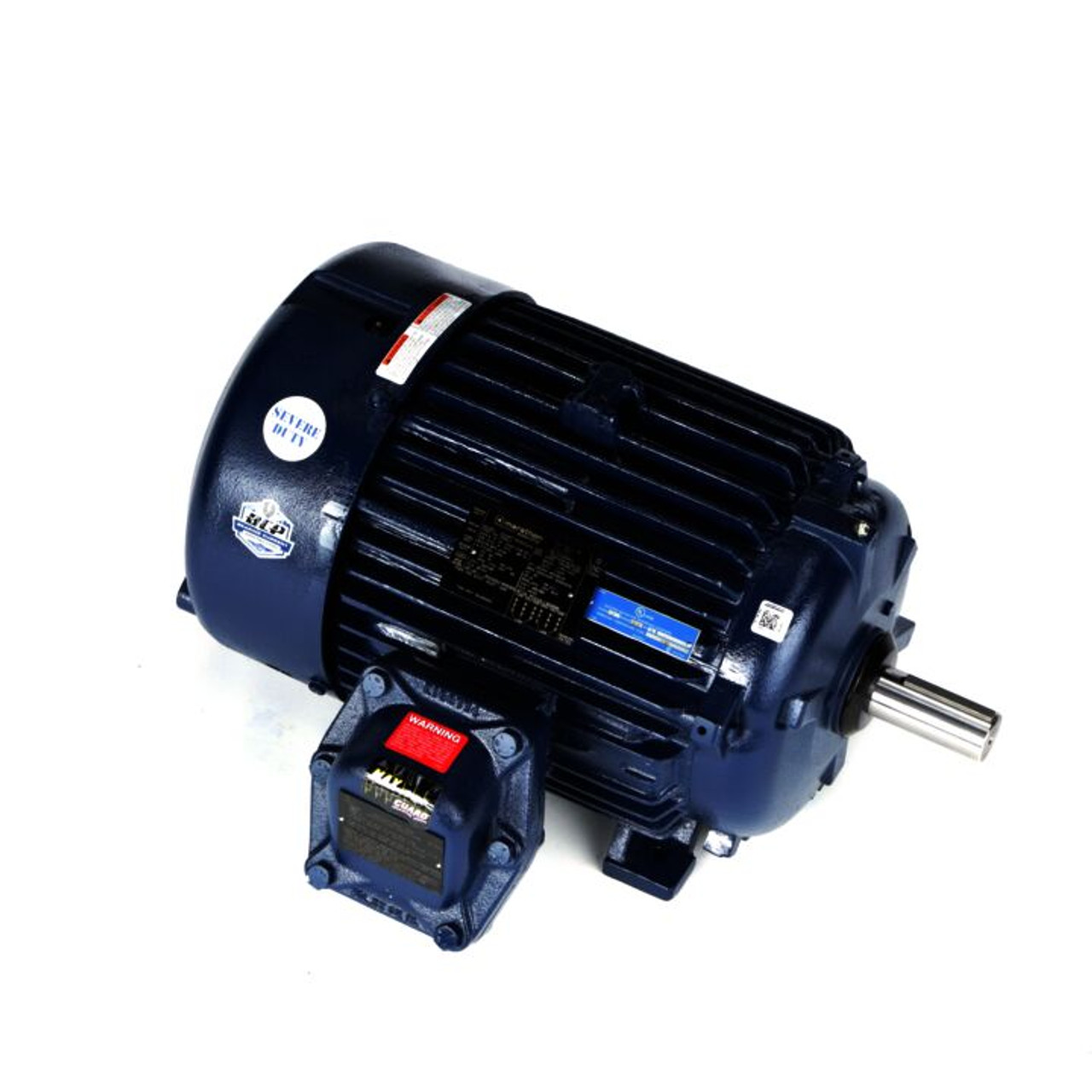

E506-P, 20 & 15 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 256T Frame, EPFC, Hazardous Duty® Explosion Proof Motor, 256TTGN16552

E506-P, 20 & 15 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 256T Frame, EPFC, Hazardous Duty® Explosion Proof Motor, 256TTGN16552

$2,763.91
(No reviews yet) Write a Review
SKU:
E506-P
Output HP:
20 Hp
Output KW:
14.9 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1775 rpm
Frame Size:
256T
Mounting:
Rigid Base
Enclosure:
Explosion Proof Fan Cooled
Product Drawings1:
E506-P.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 20 & 15 Hp
Output KW: 14.9 & 11.2 kW Voltage: 230/460 & 190/380 V
Speed: 1775 & 1475 rpm Service Factor: 1.15 & 1.15
Frame: 256T Thermal Protection: Thermostat
Efficiency: 93 & 92.5 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 48/24.1 & 44/22 A
Power Factor: 84 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6309
Opp Drive End Bearing Size: 6210 Enclosure: Explosion Proof Fan cooled
UL: UL Listed And CSA Certified CSA: Y
CE: N IP Code: 54
Number of Speeds: 1 Hazardous Location: DIV 1 EXP PROOF CL I GR CD CL II GR FG T3B



!
