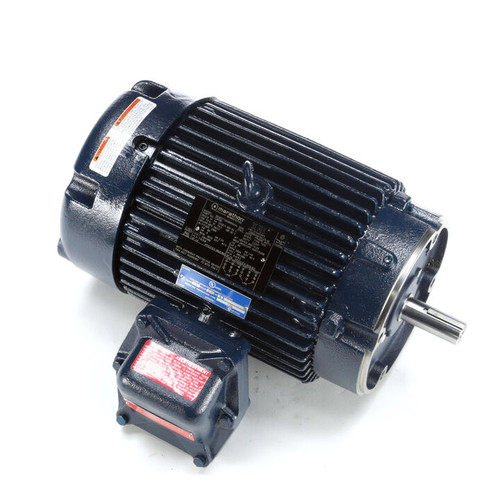

C324B, 5 & 3 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 184TC Frame, EPFC, Hazardous Duty® Explosion Proof Motor, 184TTGN16027AA

C324B, 5 & 3 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 184TC Frame, EPFC, Hazardous Duty® Explosion Proof Motor, 184TTGN16027AA

$1,085.19
(No reviews yet) Write a Review
SKU:
C324B
Output HP:
5 & 3 Hp
Output KW:
3.7 & 2.2 kW
Voltage:
230/460 & 190/380 V
Phase:
3
Speed (RPM):
1755 & 1465 rpm
Frame Size:
184TC
Mounting:
Round
Enclosure:
Explosion Proof Fan Cooled
Product Drawings1:
C324B.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 5 & 3 Hp
Output KW: 3.7 & 2.2 kW Voltage: 230/460 & 190/380 V
Speed: 1755 & 1465 rpm Service Factor: 1.00 & 1.00
Frame: 184TC Thermal Protection: Thermostat
Efficiency: 90.2 & 90.2 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 12.4/6.2 & 9.6/4.8 A
Power Factor: 83.5 Duty: Continuous
Insulation Class: B Design Code: B
KVA Code: J Drive End Bearing Size: 6207
Opp Drive End Bearing Size: 6206 Enclosure: Explosion Proof Fan cooled
UL: UL Listed; also, UL Certified for Canada CSA: N
CE: N IP Code: 54
Number of Speeds: 1 Hazardous Location: DIV 1 EXP PROOF CL I GR CD CL II GR FG T3B



!
