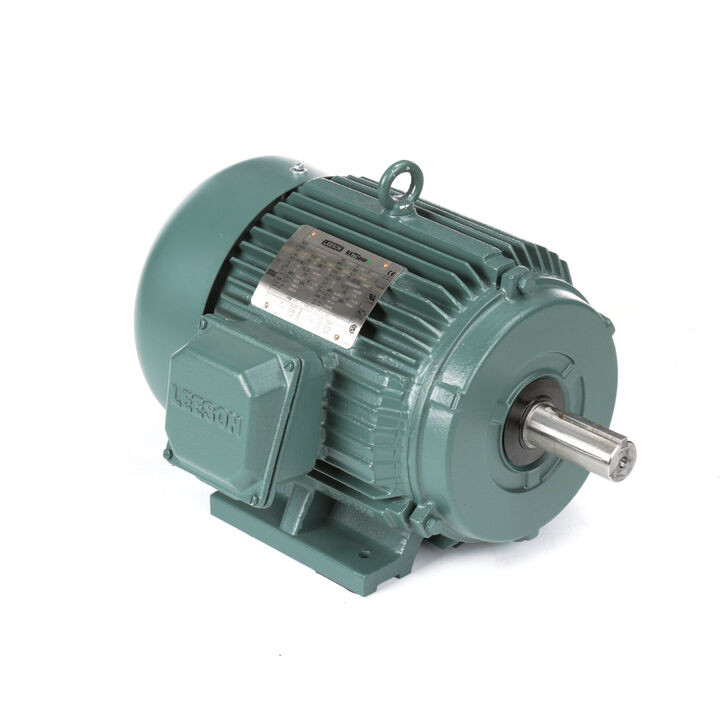

825403.00, 3 HP, 3 Ph, 60 Hz, 230/460 V, 900 RPM, 215T Frame, TEFC, General Purpose Motor, 215TTFN16085A

825403.00, 3 HP, 3 Ph, 60 Hz, 230/460 V, 900 RPM, 215T Frame, TEFC, General Purpose Motor, 215TTFN16085A

$2,125.85
(No reviews yet) Write a Review
SKU:
825403
Output HP:
3 Hp
Output KW:
2.2 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
875 rpm
Frame Size:
215T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
825403.00.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 3 Hp
Output KW: 2.2 kW Voltage: 230/460 V
Speed: 875 rpm Service Factor: 1.15
Frame: 215T Thermal Protection: No Protection
Efficiency: 86.5 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 10.0/5.0 A
Power Factor: 66.5 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: H Drive End Bearing Size: 6307
Opp Drive End Bearing Size: 6208 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 43
Number of Speeds: 1




!
