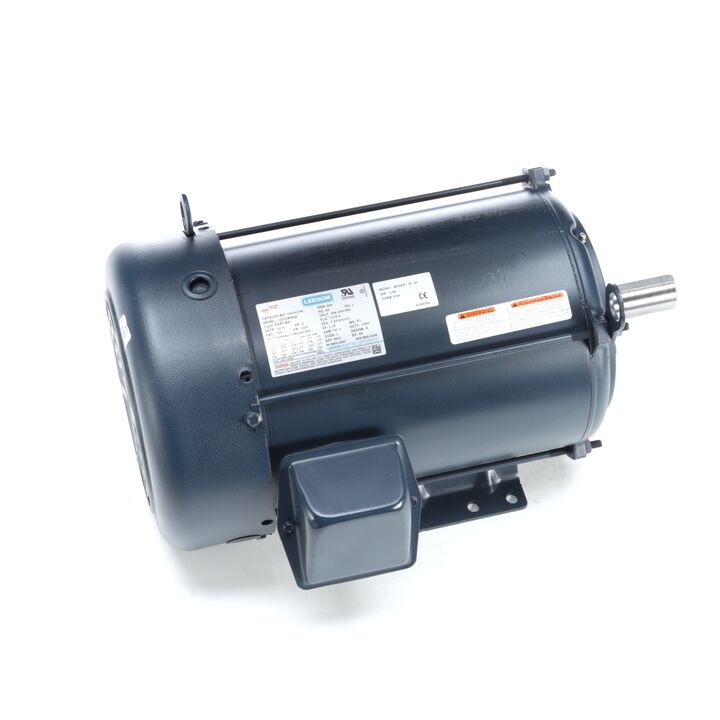

141312.00, 2 HP, 3 Ph, 60 Hz, 208-230/460 V, 900 RPM, 213T Frame, TEFC, General Purpose Motor, C213T8FB4A141312.00,

141312.00, 2 HP, 3 Ph, 60 Hz, 208-230/460 V, 900 RPM, 213T Frame, TEFC, General Purpose Motor, C213T8FB4A141312.00,

$1,310.28
(No reviews yet) Write a Review
SKU:
141312
Output HP:
2 Hp
Output KW:
1.5 kW
Voltage:
208-230/460 V
Phase:
3
Speed (RPM):
885 rpm
Frame Size:
213T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
141312.00.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 2 Hp
Output KW: 1.5 kW Voltage: 208-230/460 V
Speed: 885 rpm Service Factor: 1.15
Frame: 213T Thermal Protection: No Protection
Efficiency: 86.5 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 7.6-8.0/4.0 A
Power Factor: 56 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: L Drive End Bearing Size: 6307
Opp Drive End Bearing Size: 6206 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 43
Number of Speeds: 1
!
