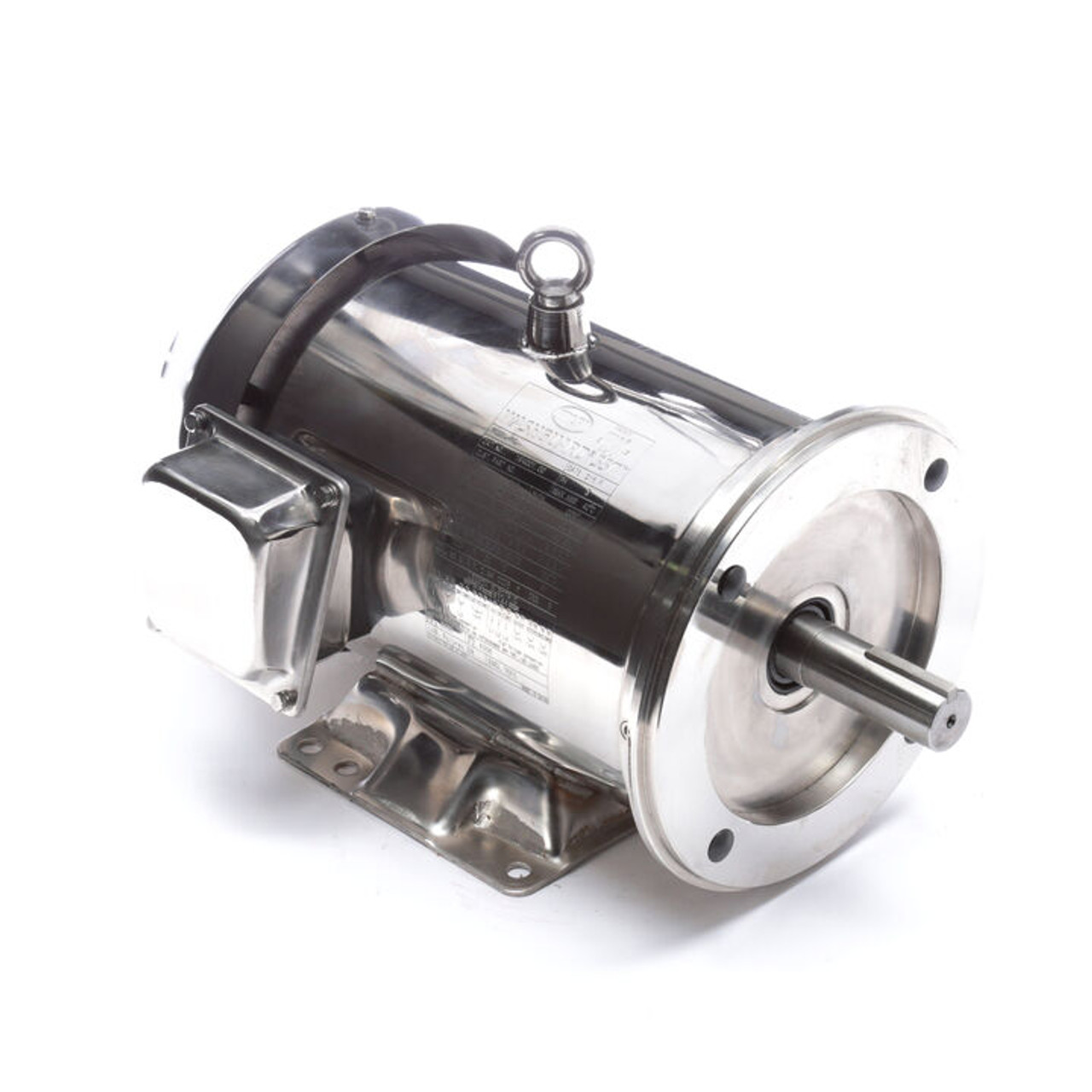

194011.00, 20 & 15 HP, 3 Ph, 60 & 50 Hz, 208-230/460 & 190/380 V, 1800 & 1500 RPM, 256TC Frame, TEFC, SST Duckâ„¢ General Purpose Motor,C256T17WK2A

194011.00, 20 & 15 HP, 3 Ph, 60 & 50 Hz, 208-230/460 & 190/380 V, 1800 & 1500 RPM, 256TC Frame, TEFC, SST Duckâ„¢ General Purpose Motor,C256T17WK2A

$5,030.06
(No reviews yet) Write a Review
SKU:
194011
Output HP:
20 & 15 Hp
Output KW:
14.9 & 11.2 kW
Voltage:
208-230/460 & 190/380 V
Phase:
3
Speed (RPM):
1770 & 1470 rpm
Frame Size:
256TC
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
194011.00.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 20 & 15 Hp
Output KW: 14.9 & 11.2 kW Voltage: 208-230/460 & 190/380 V
Speed: 1770 & 1470 rpm Service Factor: 1.15 & 1.15
Frame: 256TC Thermal Protection: No Protection
Efficiency: 93 & 91.7 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 52-47/23.6 & 43/21.4 A
Power Factor: 86 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6309
Opp Drive End Bearing Size: 6211 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 55
Number of Speeds: 1



!
