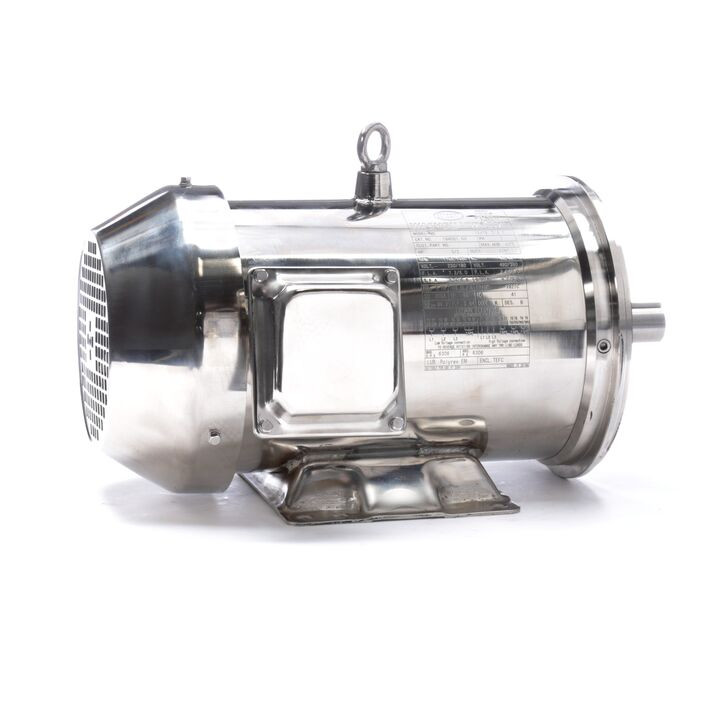

194001.00, 3 & 2 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 182TC Frame, TEFC - 194001.00, SST Duckâ„¢ General Purpose Motor,C182T17WK21A

194001.00, 3 & 2 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 182TC Frame, TEFC - 194001.00, SST Duckâ„¢ General Purpose Motor,C182T17WK21A

$1,428.62
(No reviews yet) Write a Review
SKU:
194001
Output HP:
3 & 2 Hp
Output KW:
2.2 & 1.5 kW
Voltage:
230/460 & 190/380 V
Phase:
3
Speed (RPM):
1745 & 1450 rpm
Frame Size:
182TC
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
194001.00.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 3 & 2 Hp
Output KW: 2.2 & 1.5 kW Voltage: 230/460 & 190/380 V
Speed: 1745 & 1450 rpm Service Factor: 1.15 & 1.15
Frame: 182TC Thermal Protection: No Protection
Efficiency: 89.5 & 86.5 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 7.2/3.6 & 6.0/3.0 A
Power Factor: 84 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: K Drive End Bearing Size: 6306
Opp Drive End Bearing Size: 6306 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 55
Number of Speeds: 1



!
