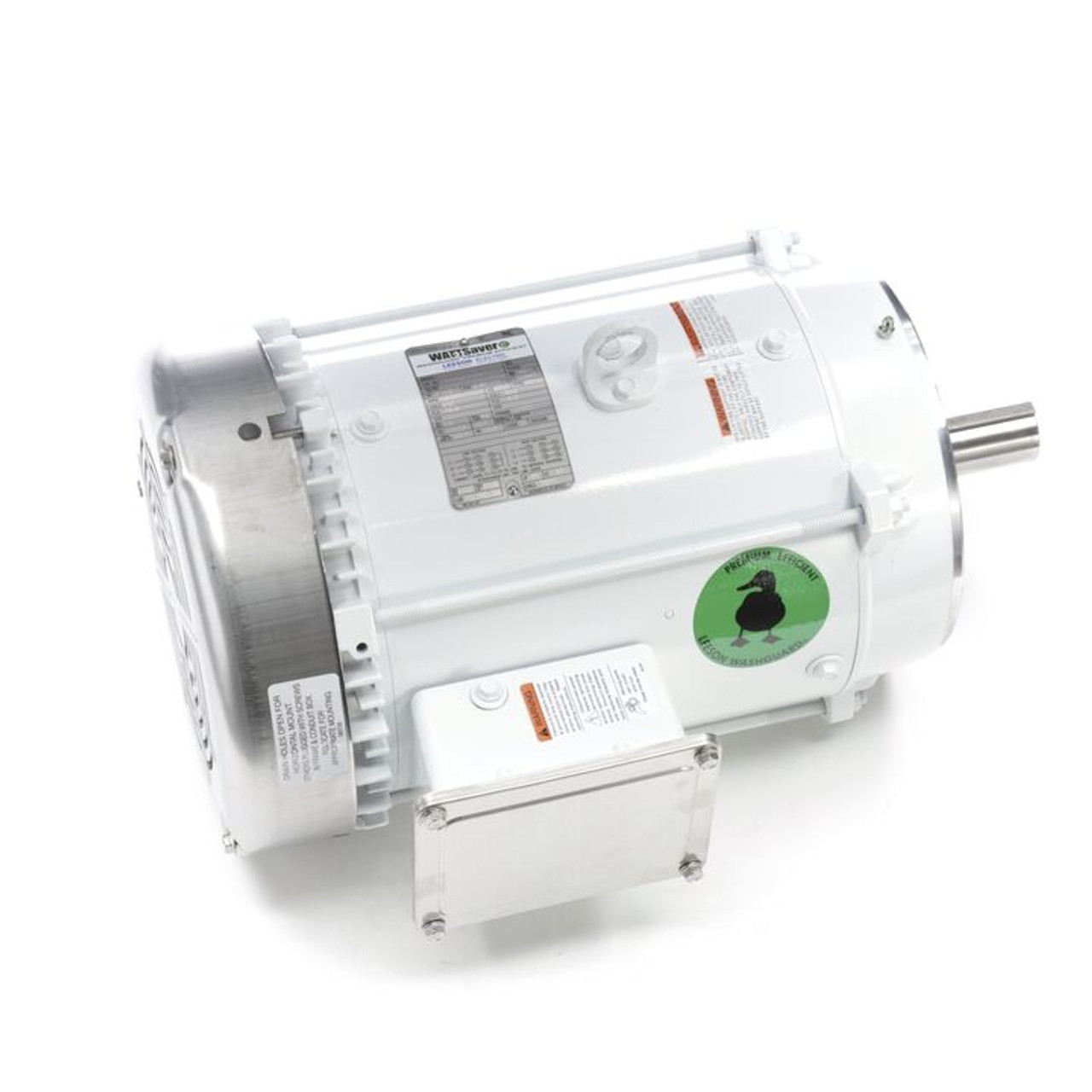

141267.00, 7.50 HP, 3 Ph, 60 Hz, 230/460 V, 3600 RPM, 213TC Frame, TEFC, General Purpose Motor,C213T17WC5A

141267.00, 7.50 HP, 3 Ph, 60 Hz, 230/460 V, 3600 RPM, 213TC Frame, TEFC, General Purpose Motor,C213T17WC5A

$1,563.43
(No reviews yet) Write a Review
SKU:
141267
Output HP:
7.50 Hp
Output KW:
5.6 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
3525 rpm
Frame Size:
213TC
Mounting:
Round
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
141267.00.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 7.50 Hp
Output KW: 5.6 kW Voltage: 230/460 V
Speed: 3525 rpm Service Factor: 1
Frame: 213TC Thermal Protection: No Protection
Efficiency: 89.5 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 18.6/9.3 A
Power Factor: 84.6 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: H Drive End Bearing Size: 6309
Opp Drive End Bearing Size: 6206 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 55
Number of Speeds: 1



!
