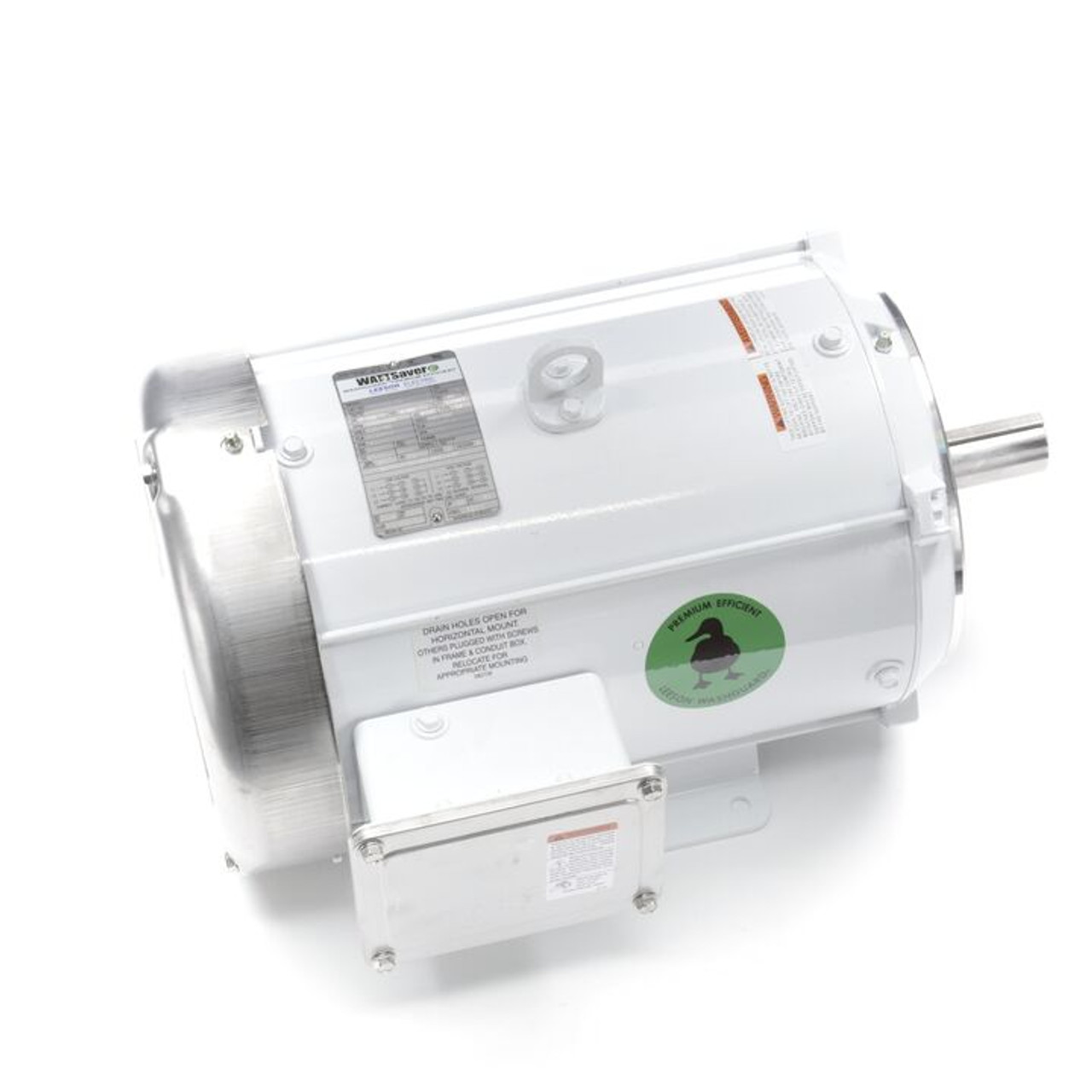

140822.00, 7.50 & 7.50 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 213TC Frame, TEFC, General Purpose Motor, C213T17WK9A

140822.00, 7.50 & 7.50 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 213TC Frame, TEFC, General Purpose Motor, C213T17WK9A

$1,662.86
(No reviews yet) Write a Review
SKU:
140822
Output HP:
7.50 & 7.50 Hp
Output KW:
5.6 & 5.6 kW
Voltage:
230/460 & 190/380 V
Phase:
3
Speed (RPM):
1765 & 1460 rpm
Frame Size:
213TC
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
140822.00.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 7.50 & 7.50 Hp
Output KW: 5.6 & 5.6 kW Voltage: 230/460 & 190/380 V
Speed: 1765 & 1460 rpm Service Factor: 1.25 & 1.25
Frame: 213TC Thermal Protection: No Protection
Efficiency: 91.7 & 89.5 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 22.4-21.6/10.8 & 24.8/12.4 A
Power Factor: 72 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: J Drive End Bearing Size: 6209
Opp Drive End Bearing Size: 6206 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 55
Number of Speeds: 1
!
