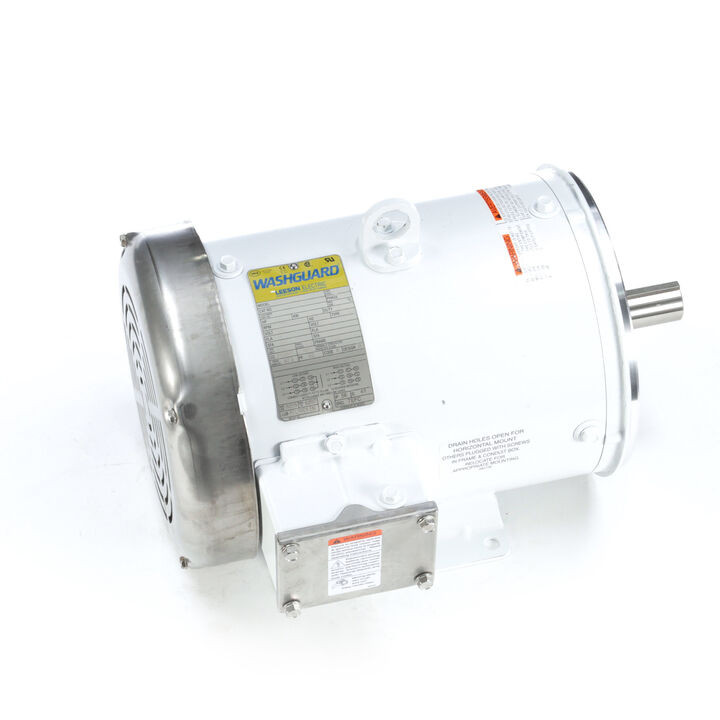

132563.00, 1.50 HP, 3 Ph, 60 Hz, 230/460 V, 1200 RPM, 182TC Frame, TEFC, General Purpose Motor,C182T11WK1B

132563.00, 1.50 HP, 3 Ph, 60 Hz, 230/460 V, 1200 RPM, 182TC Frame, TEFC, General Purpose Motor,C182T11WK1B

Marathon Electric

$1,038.22
(No reviews yet) Write a Review
SKU:
132563
Output HP:
1.50 Hp
Output KW:
kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1200 rpm
Frame Size:
182TC
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
132563.00.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Face w/Base, Washguard.

Engineering Data

Output HP:1.50 Hp
Output KW:1.12 kW
Frequency:60 Hz
Voltage:230/460 V
Current:6.0/3.0 A
Speed:1170 rpm
Service Factor:1.15
Phase:3
Efficiency:87.5 %
Power Factor:62
Duty:CONTINUOUS
Insulation Class:F4
Design Code:B
KVA Code:K
Frame:182TC
Enclosure:TEFC
Thermal Protection:NOT
Ambient Temperature:40 °C
Drive End Bearing Size:6207
Opp Drive End Bearing Size:6205
UL:Y-(LEESON UL REC)
CSA:Y
CE:YIP Code:55
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:ACROSS THE LINE
Poles:6
Rotation:REV
Resistance Main:0 Ohms
Mounting:RIGID
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:ROLLED STEEL
Shaft Type:T
Overall Length:14.97 in
Frame Length:9.5 in
Shaft Diameter:1 1/8 in
Shaft Extension:2.88 in
Assembly/Box Mounting:F1 ONLY



!
