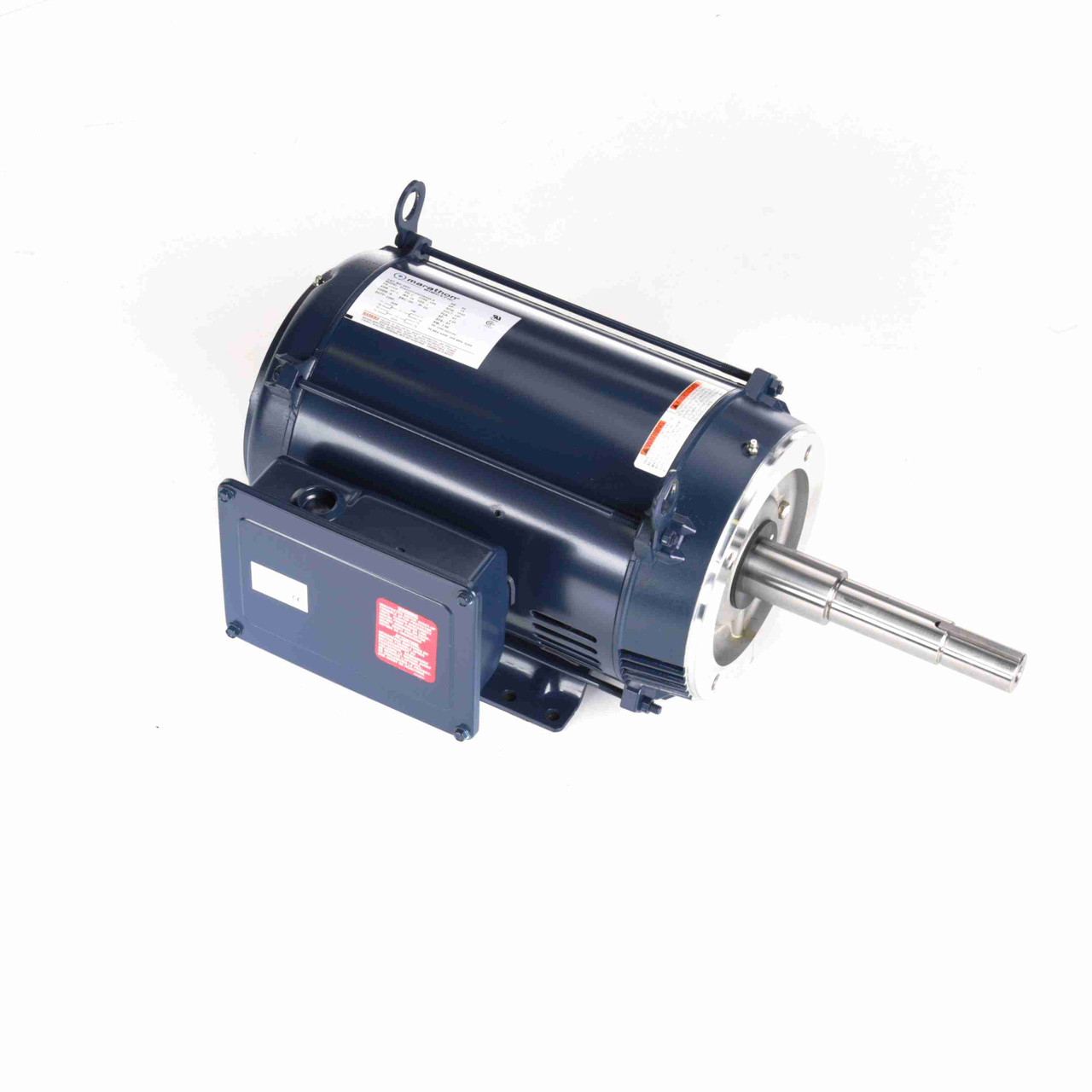

Z425, 3 Hp, 3600 Rpm, 182JP FR, 115/230 Vac, 1 PH, ODP, C-Face with Base, Close-Coupled Pump, 182TCDR8005

Z425, 3 Hp, 3600 Rpm, 182JP FR, 115/230 Vac, 1 PH, ODP, C-Face with Base, Close-Coupled Pump, 182TCDR8005

Marathon Electric

$807.99
(No reviews yet) Write a Review
SKU:
Z425
Output HP:
3 Hp
Output KW:
2.2 kW
Voltage:
115/230 V
Phase:
1
Speed (RPM):
3460 rpm
Frame Size:
182JP
Mounting:
C-Face
Enclosure:
Drip Proof
Product Drawings1:
Z425.pdf
Manufacture:
Marathon
MAP Policy:
Yes
Adding to cart… The item has been added

Add to Cart for Discount

Nameplate Specifications

Phase: 1 Output HP: 3 Hp
Output KW: 2.2 kW Voltage: 115/230 V
Speed: 3460 rpm Service Factor: 1.15
Frame: 182JP Enclosure: Drip Proof
Thermal Protection: No Protection Efficiency: 74 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 32.0/16.0 A Power Factor: 78.7
Duty: Continuous Insulation Class: B
Design Code: L KVA Code: G
Drive End Bearing Size: 6307 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: Y IP Code: 23
Number of Speeds: 1
!
