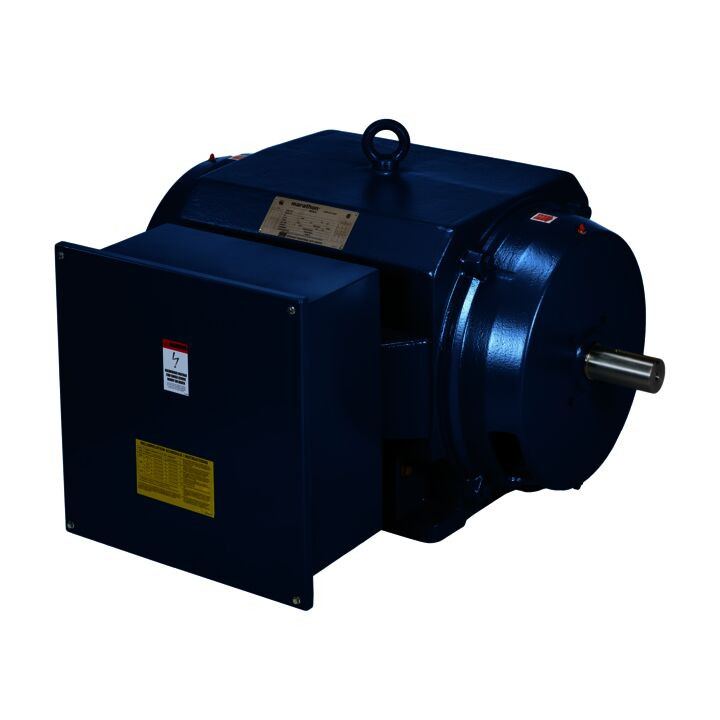

Y9130, 1500HP,2P,ODP,5810S,3/60/2300/4000-4160,CW/DE,120VSH,WRTD-SH,BRTD PROV, Endurance Series® MODEL-IHP, 5810SVDSL16003

Y9130, 1500HP,2P,ODP,5810S,3/60/2300/4000-4160,CW/DE,120VSH,WRTD-SH,BRTD PROV, Endurance Series® MODEL-IHP, 5810SVDSL16003

$151,644.00
(No reviews yet) Write a Review
SKU:
Y9130
Output HP:
1500 Hp
Output KW:
1120 kW
Voltage:
2300/4000-4160 V
Phase:
3
Speed (RPM):
3583 rpm
Frame Size:
5810S
Mounting:
Rigid Base
Enclosure:
Drip Proof
Product Drawings1:
Y9130.pdf
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 1500 Hp
Output KW: 1120 kW Voltage: 2300/4000-4160 V
Speed: 3583 rpm Service Factor: 1.15
Frame: 5810S Thermal Protection: No Protection
Efficiency: 96.5 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 317.0/182.0-175.0 A
Power Factor: 92 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: F Drive End Bearing Size: 6316
Opp Drive End Bearing Size: 6316 Enclosure: Drip Proof
UL: Recognized CSA: Y
CE: N IP Code: 23
Number of Speeds: 1



!
