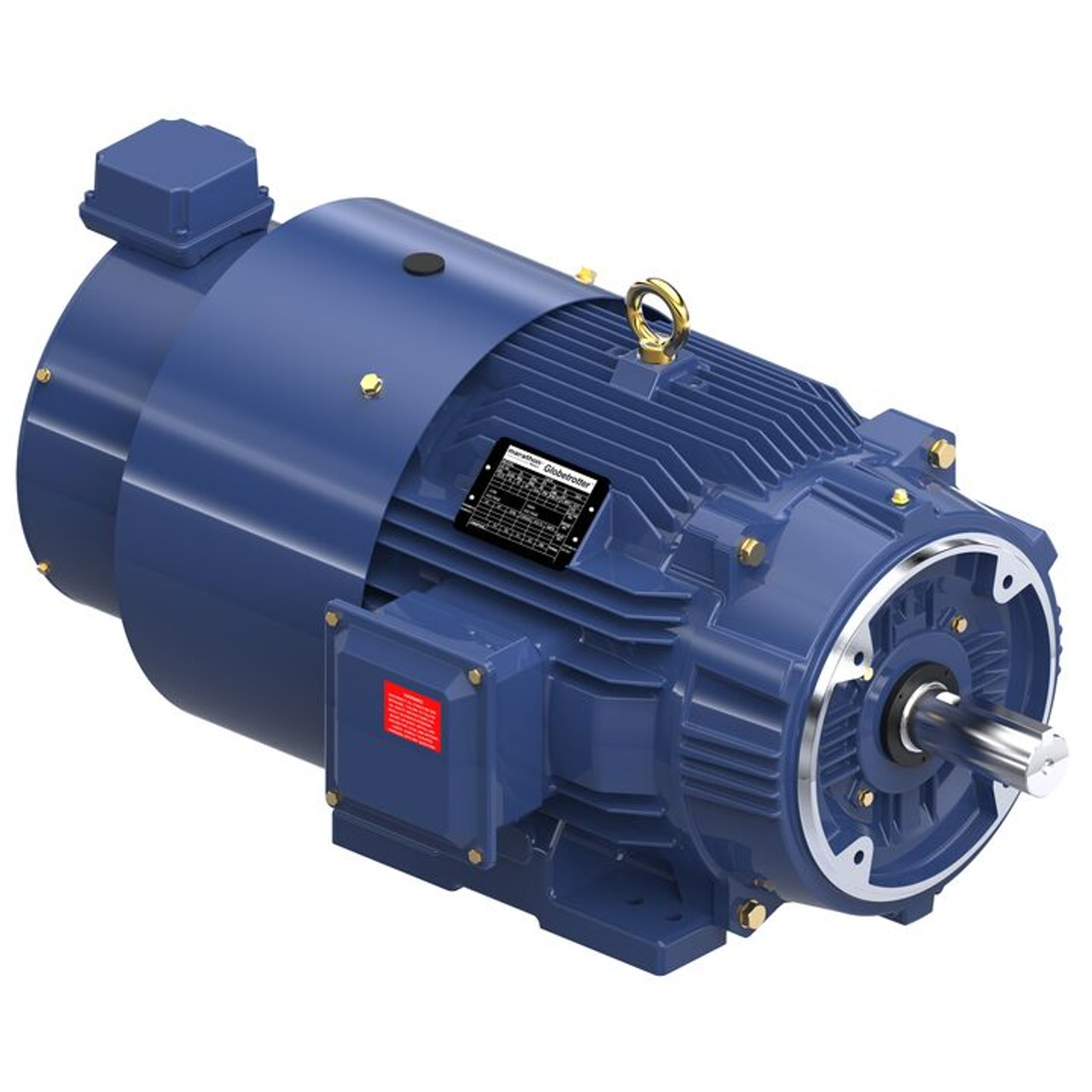

Y582A, 20 HP, 3 Ph, 60 Hz, 230/460 V, 1200 RPM, 286TC Frame, TEBC-AXIAL, Blue Max퉌¬ Inverter Duty Encoder Motor, 286THFCD8086

Y582A, 20 HP, 3 Ph, 60 Hz, 230/460 V, 1200 RPM, 286TC Frame, TEBC-AXIAL, Blue Max퉌¬ Inverter Duty Encoder Motor, 286THFCD8086

Marathon Electric

$9,546.84
(No reviews yet) Write a Review
SKU:
Y582A
Output HP:
20 Hp
Output KW:
14.9 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1180 rpm
Frame Size:
286TC
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Blower Cooled-Axial
Product Drawings1:
Y582A.pdf
Manufacture:
Marathon
MAP Policy:
Yes
Adding to cart… The item has been added

Add to Cart for Discount

Nameplate Specifications

Phase: 3 Output HP: 20 Hp
Output KW: 14.9 kW Voltage: 230/460 V
Speed: 1180 rpm Service Factor: 1
Frame: 286TC Thermal Protection: Thermostat
Efficiency: 91.4 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 51.0/25.5 A
Power Factor: 77 Duty: Continuous
Insulation Class: H Design Code: INV
KVA Code: J Drive End Bearing Size: 6311
Opp Drive End Bearing Size: 6211 Enclosure: Totally Enclosed Blower cooled - Axial
UL: Recognized CSA: Y
CE: Y IP Code: 55
Number of Speeds: 1
!
