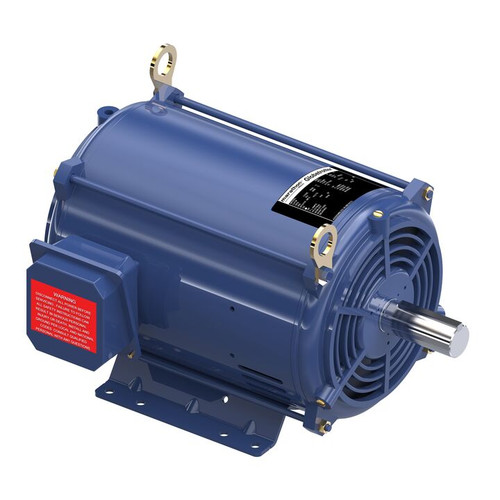

Y490A, 10 & 2.50 HP, 3 Ph, 60 Hz, 200-230 & 200-230 V, 1800 & 1800 RPM, 215T Frame, DP, Multispeed Motor, 215TTDBD17206

Y490A, 10 & 2.50 HP, 3 Ph, 60 Hz, 200-230 & 200-230 V, 1800 & 1800 RPM, 215T Frame, DP, Multispeed Motor, 215TTDBD17206

$1,751.92
(No reviews yet) Write a Review
SKU:
Y490A
Output HP:
10 Hp
Output KW:
7.5 kW
Voltage:
200-230 V
Phase:
3
Speed (RPM):
1765 rpm
Frame Size:
215T
Mounting:
Rigid Base
Enclosure:
Drip Proof
Product Drawings1:
Y490A.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 10 & 2.50 Hp
Output KW: 7.5 & 1.9 kW Voltage: 200-230 & 200-230 V
Speed: 1765 & 878 rpm Service Factor: 1.15 & 1.15
Frame: 215T Thermal Protection: No Protection
Efficiency: 86.5 & 82 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 27.6-25.5 & 9-8.8 A
Power Factor: 86 Duty: Continuous
Insulation Class: F Design Code: 1VT
KVA Code: K Drive End Bearing Size: 6307
Opp Drive End Bearing Size: 6206 Enclosure: Drip Proof
UL: Recognized CSA: Y
CE: Y IP Code: 22
Number of Speeds: 2



!
