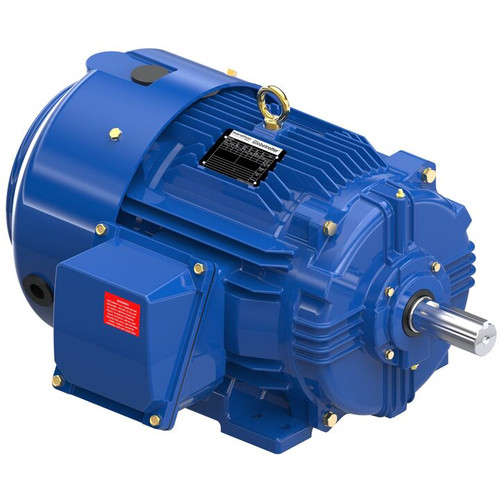

Y384A, 15 & 3.75 HP, 3 Ph, 60 Hz, 460 & 460 V, 1800 & 1800 RPM, 256T Frame, TEFC, Multispeed Motor, 256TTFCD7250

Y384A, 15 & 3.75 HP, 3 Ph, 60 Hz, 460 & 460 V, 1800 & 1800 RPM, 256T Frame, TEFC, Multispeed Motor, 256TTFCD7250

$3,458.70
(No reviews yet) Write a Review
SKU:
Y384A
Output HP:
15 Hp
Output KW:
11.2 kW
Voltage:
460 V
Phase:
3
Speed (RPM):
1778 rpm
Frame Size:
256T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
Y384A.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 15 & 3.75 Hp
Output KW: 11.2 & 2.8 kW Voltage: 460 & 460 V
Speed: 1778 & 885 rpm Service Factor: 1.15 & 1.15
Frame: 256T Thermal Protection: No Protection
Efficiency: 91 & 86.5 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 18.8 & 6.8 A
Power Factor: 81.8 Duty: Continuous
Insulation Class: H Design Code: 1VT
KVA Code: J Drive End Bearing Size: 6309
Opp Drive End Bearing Size: 6209 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 55
Number of Speeds: 2



!
