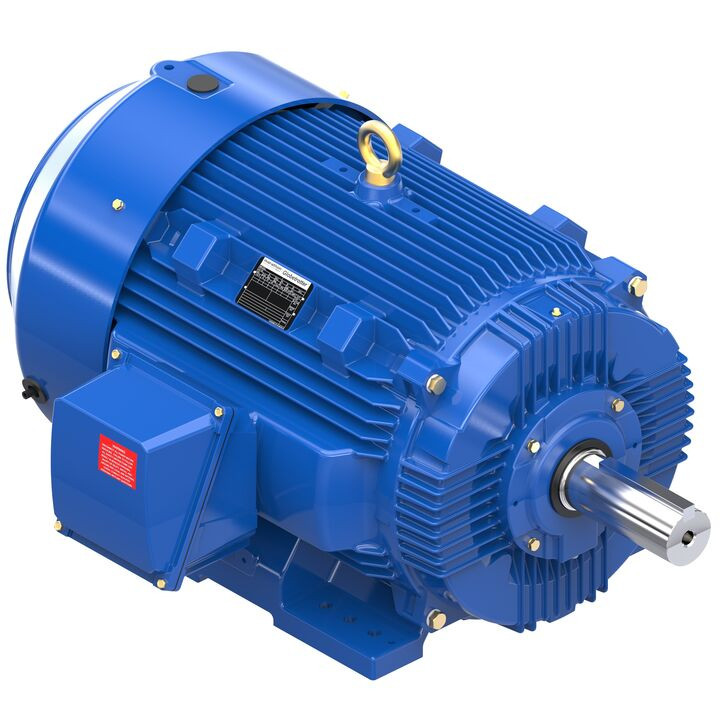

W612A-P, 150 HP, 3 Ph, 60 Hz, 460 V, 1800 RPM, 445T Frame, TEFC, XRI®-841 Severe Duty Motor, 445THFCD19071

W612A-P, 150 HP, 3 Ph, 60 Hz, 460 V, 1800 RPM, 445T Frame, TEFC, XRI®-841 Severe Duty Motor, 445THFCD19071

$17,289.84
(No reviews yet) Write a Review
SKU:
W612A-P
Output HP:
150 Hp
Output KW:
112 kW
Voltage:
460 V
Phase:
3
Speed (RPM):
1790 rpm
Frame Size:
445T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
W612A-P.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 150 Hp
Output KW: 112 kW Voltage: 460 V
Speed: 1790 rpm Service Factor: 1.15
Frame: 445T Thermal Protection: No Protection
Efficiency: 95.8 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 169 A
Power Factor: 87 Duty: Continuous
Insulation Class: H Design Code: B
KVA Code: G Drive End Bearing Size: 6319
Opp Drive End Bearing Size: 6317 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 56
Number of Speeds: 1
!
