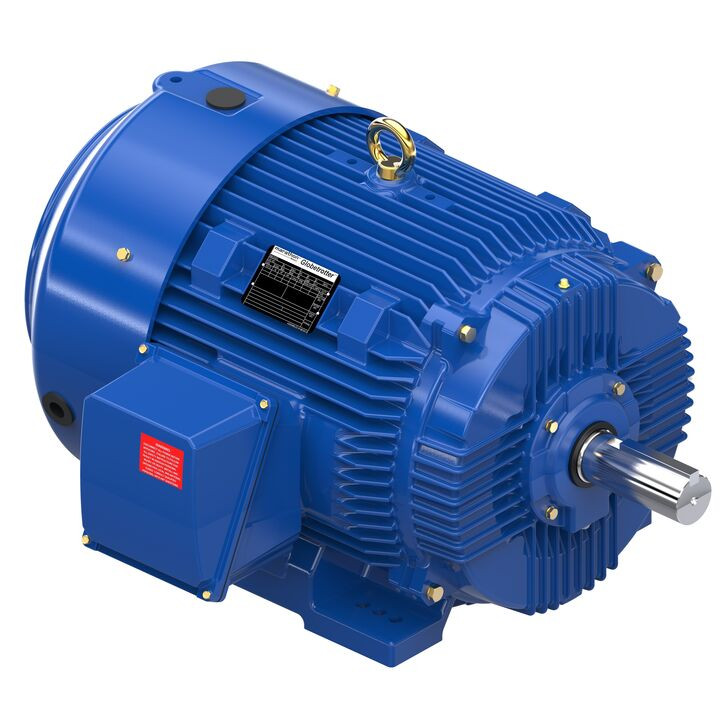

W594A-P, 75 HP, 3 Ph, 60 Hz, 460 V, 1800 RPM, 365T Frame, TEFC, XRI®-841 Severe Duty Motor, 365THFCD19065

W594A-P, 75 HP, 3 Ph, 60 Hz, 460 V, 1800 RPM, 365T Frame, TEFC, XRI®-841 Severe Duty Motor, 365THFCD19065

$8,676.64
(No reviews yet) Write a Review
SKU:
W594A-P
Output HP:
75 Hp
Output KW:
56 kW
Voltage:
460 V
Phase:
3
Speed (RPM):
1780 rpm
Frame Size:
365T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
W594A-P.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 75 Hp
Output KW: 56 kW Voltage: 460 V
Speed: 1780 rpm Service Factor: 1.15
Frame: 365T Thermal Protection: No Protection
Efficiency: 95.5 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 85 A
Power Factor: 87.5 Duty: Continuous
Insulation Class: H Design Code: B
KVA Code: G Drive End Bearing Size: 6313
Opp Drive End Bearing Size: 6213 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 56
Number of Speeds: 1
!
