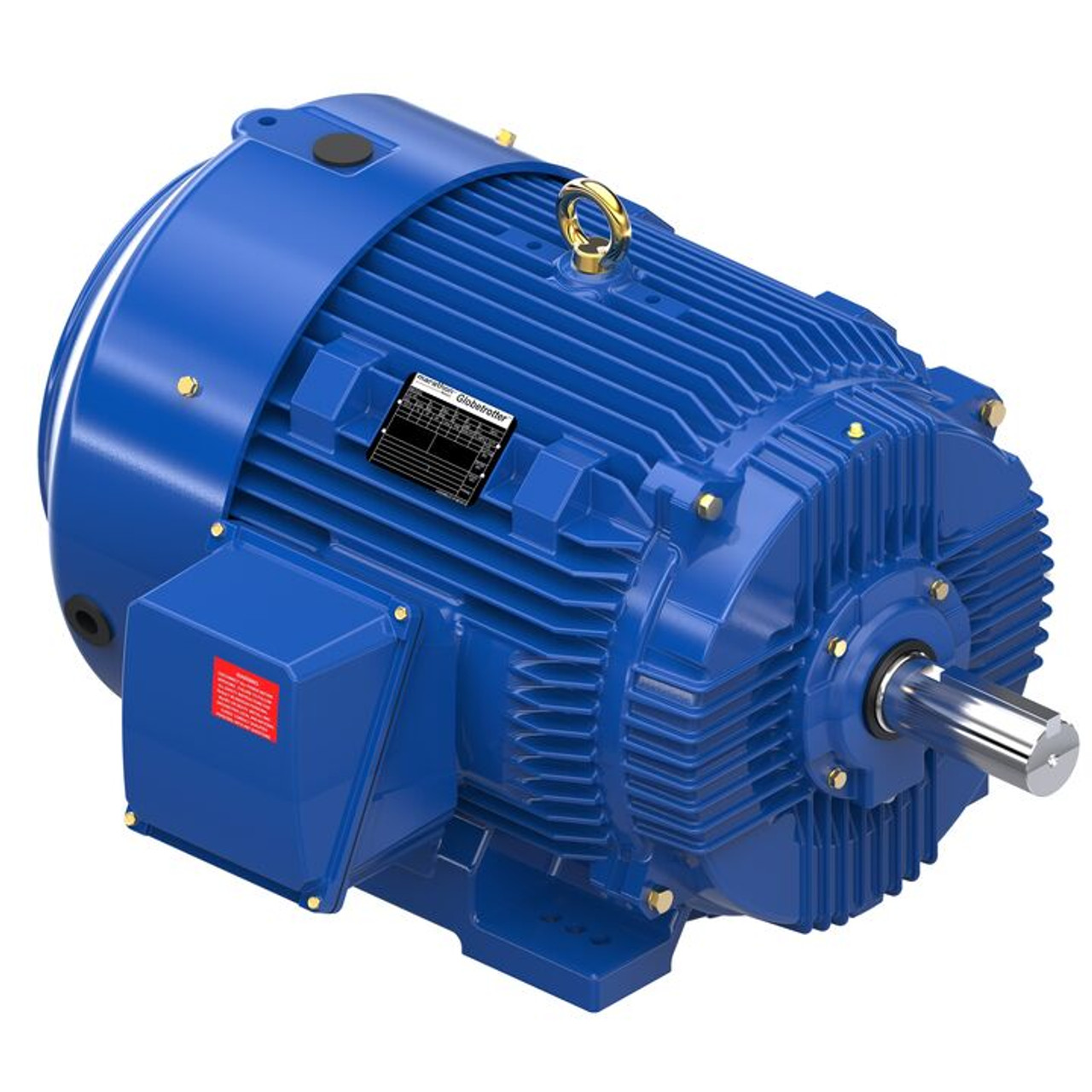

W575B-P, 40 HP, 3 Ph, 60 Hz, 460 V, 1200 RPM, 364T Frame, TEFC, XRI®-841 Severe Duty Motor, 364THFCD9077

W575B-P, 40 HP, 3 Ph, 60 Hz, 460 V, 1200 RPM, 364T Frame, TEFC, XRI®-841 Severe Duty Motor, 364THFCD9077

$8,119.71
(No reviews yet) Write a Review
SKU:
W575B-P
Output HP:
40 Hp
Output KW:
30 kW
Voltage:
460 V
Phase:
3
Speed (RPM):
1188 rpm
Frame Size:
364T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
W575B-P.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 40 Hp
Output KW: 30 kW Voltage: 460 V
Speed: 1188 rpm Service Factor: 1.15
Frame: 364T Thermal Protection: No Protection
Efficiency: 94.1 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 48 A
Power Factor: 82.5 Duty: Continuous
Insulation Class: H Design Code: B
KVA Code: G Drive End Bearing Size: 6313
Opp Drive End Bearing Size: 6213 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 56
Number of Speeds: 1
!
