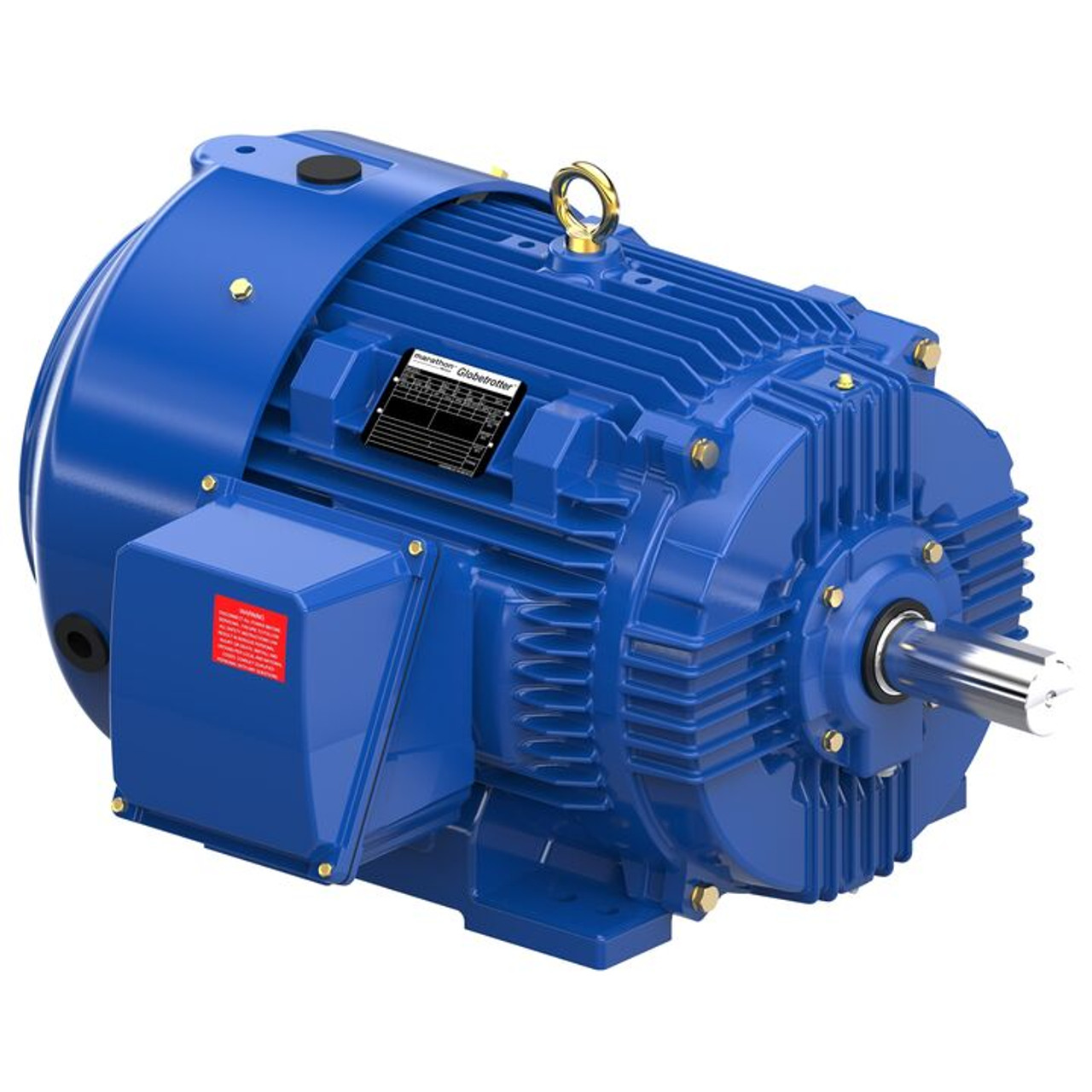

W569A-P, 30 HP, 3 Ph, 60 Hz, 460 V, 1200 RPM, 326T Frame, TEFC, XRI®-841 Severe Duty Motor, 326THFCD9077

W569A-P, 30 HP, 3 Ph, 60 Hz, 460 V, 1200 RPM, 326T Frame, TEFC, XRI®-841 Severe Duty Motor, 326THFCD9077

$5,106.92
(No reviews yet) Write a Review
SKU:
W569A-P
Output HP:
30 Hp
Output KW:
22.4 kW
Voltage:
460 V
Phase:
3
Speed (RPM):
1185 rpm
Frame Size:
326T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
W569A-P.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 30 Hp
Output KW: 22.4 kW Voltage: 460 V
Speed: 1185 rpm Service Factor: 1.15
Frame: 326T Thermal Protection: No Protection
Efficiency: 93 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 38 A
Power Factor: 79 Duty: Continuous
Insulation Class: H Design Code: B
KVA Code: G Drive End Bearing Size: 6312
Opp Drive End Bearing Size: 6212 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 56
Number of Speeds: 1



!
