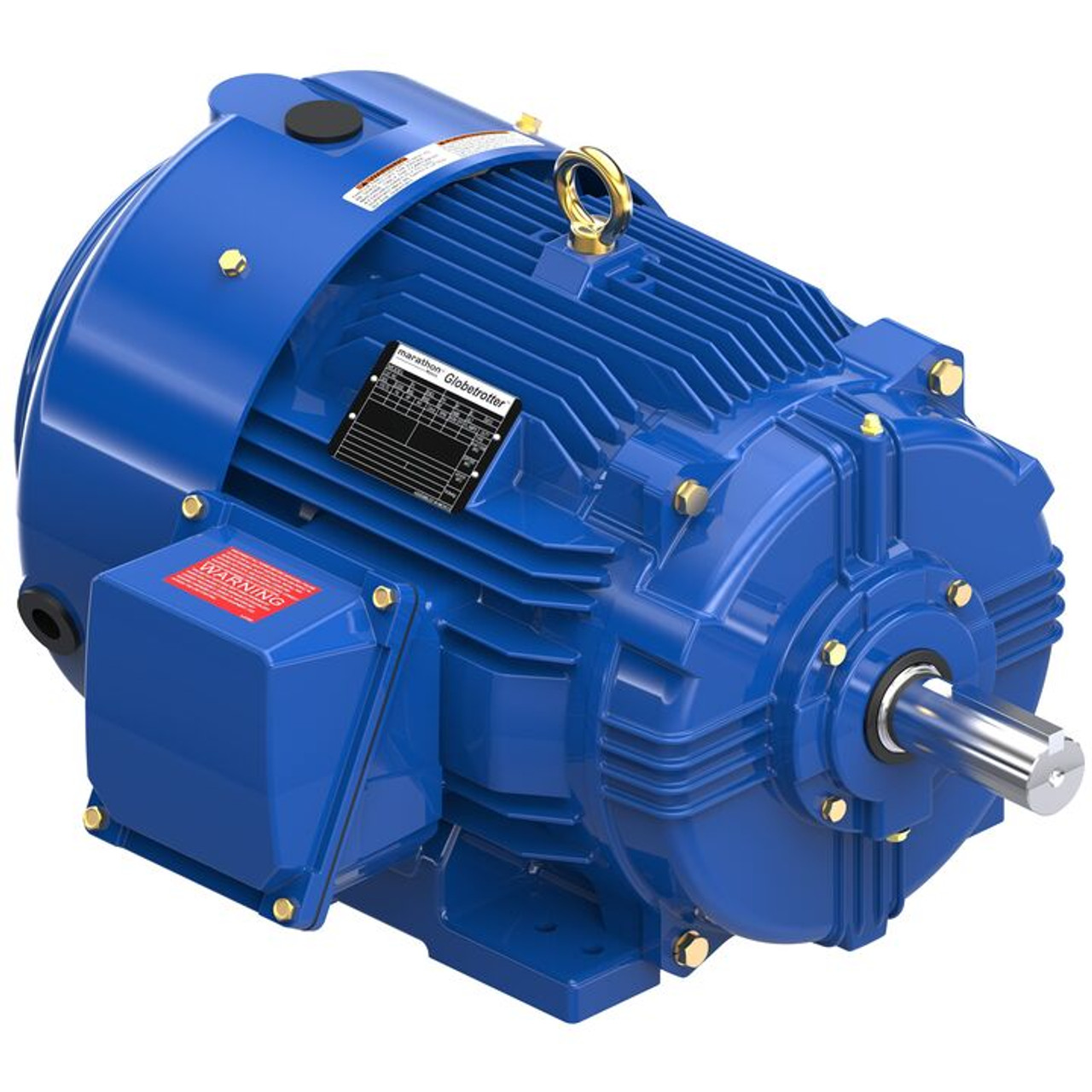

W560A-P, 25 HP, 3 Ph, 60 Hz, 460 V, 1800 RPM, 284T Frame, TEFC, XRI®-841 Severe Duty Motor, 284THFCD19048

W560A-P, 25 HP, 3 Ph, 60 Hz, 460 V, 1800 RPM, 284T Frame, TEFC, XRI®-841 Severe Duty Motor, 284THFCD19048

$2,747.44
(No reviews yet) Write a Review
SKU:
W560A-P
Output HP:
25 Hp
Output KW:
18.7 kW
Voltage:
460 V
Phase:
3
Speed (RPM):
1772 rpm
Frame Size:
284T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
W560A-P.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 25 Hp
Output KW: 18.7 kW Voltage: 460 V
Speed: 1772 rpm Service Factor: 1.15
Frame: 284T Thermal Protection: No Protection
Efficiency: 93.6 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 30 A
Power Factor: 83 Duty: Continuous
Insulation Class: H Design Code: B
KVA Code: G Drive End Bearing Size: 6311
Opp Drive End Bearing Size: 6211 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 56
Number of Speeds: 1
!
