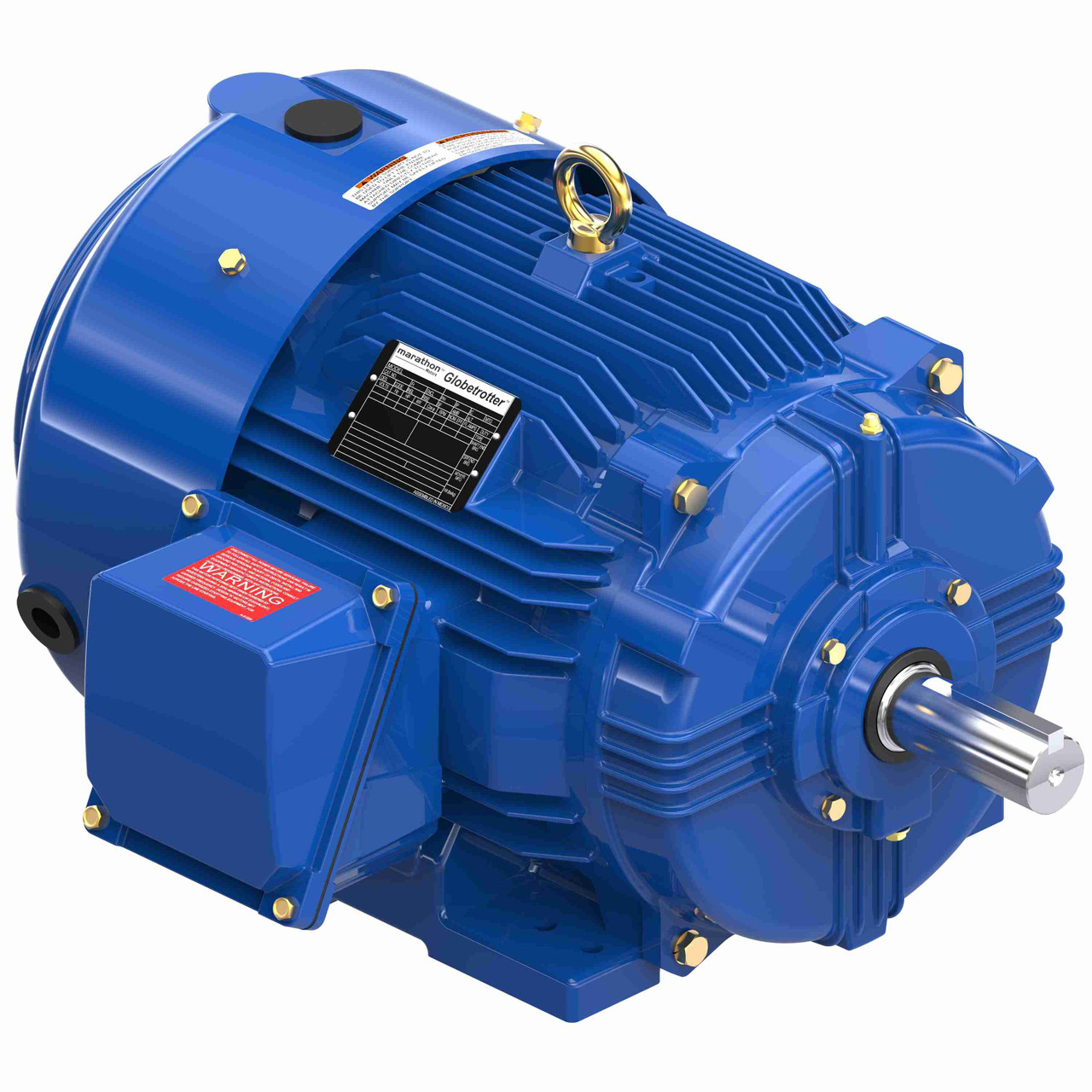

W556A, 20 Hp, 1200 Rpm, 286T FR, 575 V, 3 PH, TEFC, Rigid Base, Hazardous Duty, Severe Duty, XRI IEEE-841 Efficiency, 286THFCD19077.

W556A, 20 Hp, 1200 Rpm, 286T FR, 575 V, 3 PH, TEFC, Rigid Base, Hazardous Duty, Severe Duty, XRI IEEE-841 Efficiency, 286THFCD19077.

Marathon Electric

$4,604.37
(No reviews yet) Write a Review
SKU:
W556A
Output HP:
20 Hp
Output KW:
14.9 kW
Voltage:
575 V
Phase:
3
Speed (RPM):
1180 rpm
Frame Size:
286T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
W556A.pdf
Manufacture:
Marathon
MAP Policy:
Yes
Adding to cart… The item has been added

Add to Cart for Discount

Nameplate Specifications

Phase: 3 Output HP: 20 Hp
Output KW: 14.9 kW Voltage: 575 V
Speed: 1180 rpm Service Factor: 1.15
Frame: 286T Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Protection Efficiency: 91.7 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 20.8 A Power Factor: 79
Duty: Continuous Insulation Class: H
Design Code: B KVA Code: G
Drive End Bearing Size: 6311 Opp Drive End Bearing Size: 6211
UL: Listed CSA: Y
CE: Y IP Code: 56
Number of Speeds: 1 Hazardous Location: DIVISION 2 T2B
!
