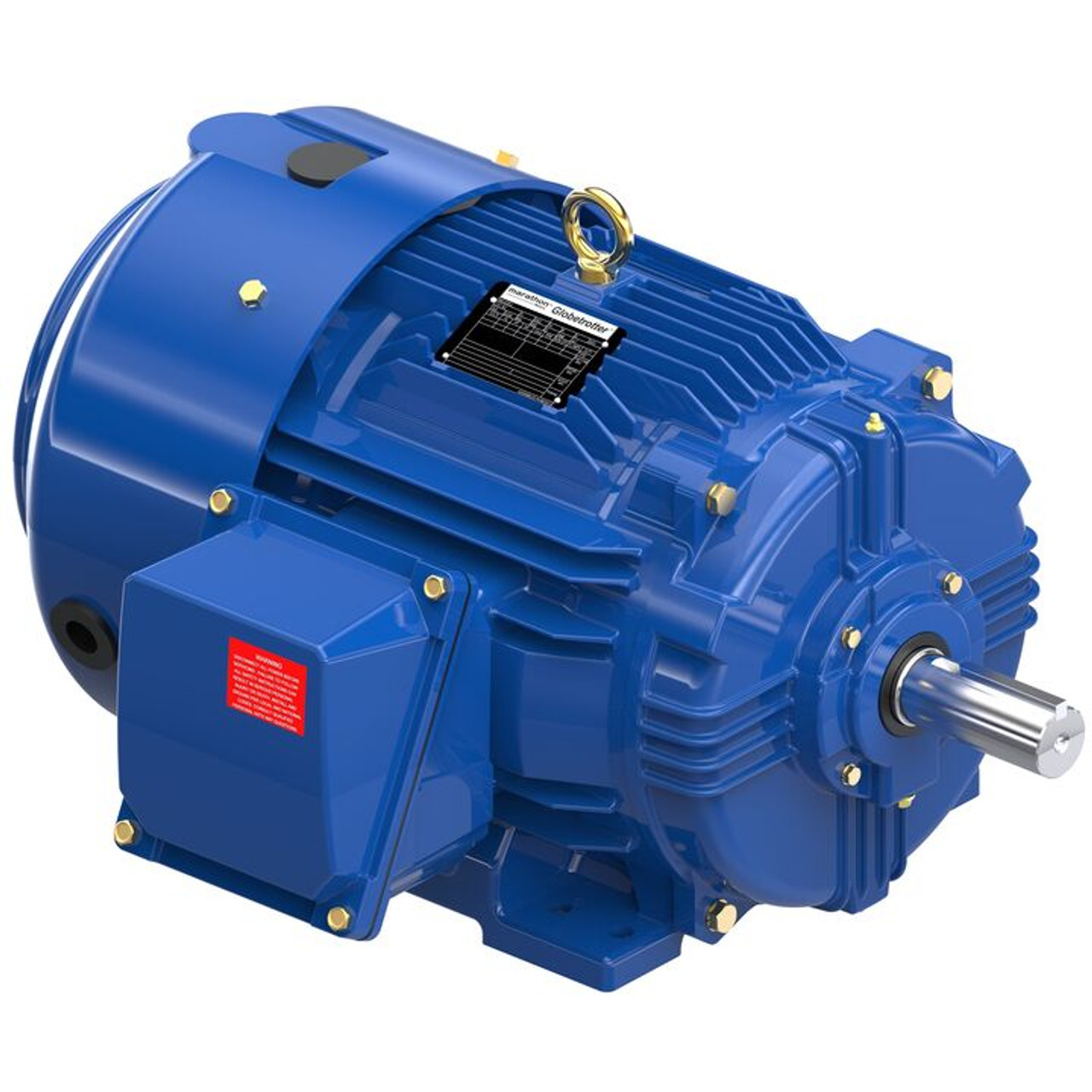

W553A-P, 20 HP, 3 Ph, 60 Hz, 460 V, 1800 RPM, 256T Frame, TEFC, XRI®-841 Severe Duty Motor, 256THFCD19056

W553A-P, 20 HP, 3 Ph, 60 Hz, 460 V, 1800 RPM, 256T Frame, TEFC, XRI®-841 Severe Duty Motor, 256THFCD19056

$2,435.73
(No reviews yet) Write a Review
SKU:
W553A-P
Output HP:
20 Hp
Output KW:
14.9 kW
Voltage:
460 V
Phase:
3
Speed (RPM):
1768 rpm
Frame Size:
256T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
W553A-P.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 20 Hp
Output KW: 14.9 kW Voltage: 460 V
Speed: 1768 rpm Service Factor: 1.15
Frame: 256T Thermal Protection: No Protection
Efficiency: 93 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 24.2 A
Power Factor: 83.5 Duty: Continuous
Insulation Class: H Design Code: B
KVA Code: G Drive End Bearing Size: 6309
Opp Drive End Bearing Size: 6209 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 56
Number of Speeds: 1



!
