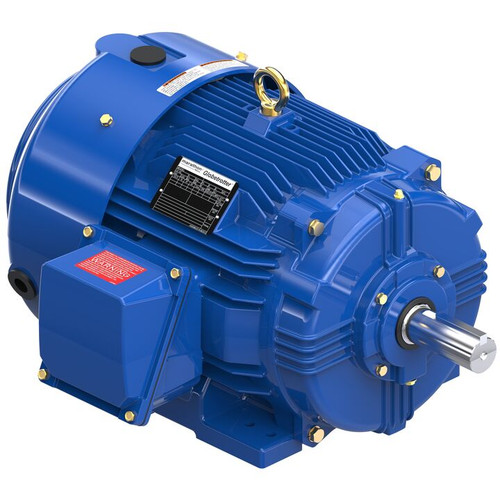

W543A, 10 HP, 3 Ph, 60 Hz, 460 V, 900 RPM, 284T Frame, TEFC, XRI®-841 Severe Duty Motor, 284THFCD19102

W543A, 10 HP, 3 Ph, 60 Hz, 460 V, 900 RPM, 284T Frame, TEFC, XRI®-841 Severe Duty Motor, 284THFCD19102

$5,021.52
(No reviews yet) Write a Review
SKU:
W543A
Output HP:
10 Hp
Output KW:
7.5 kW
Voltage:
460 V
Phase:
3
Speed (RPM):
880 rpm
Frame Size:
284T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
W543A.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 10 Hp
Output KW: 7.5 kW Voltage: 460 V
Speed: 880 rpm Service Factor: 1.15
Frame: 284T Thermal Protection: No Protection
Efficiency: 89.5 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 13.8 A
Power Factor: 75 Duty: Continuous
Insulation Class: H Design Code: B
KVA Code: H Drive End Bearing Size: 6311
Opp Drive End Bearing Size: 6211 Enclosure: Totally Enclosed Fan Cooled
UL: Listed CSA: Y
CE: Y IP Code: 56
Number of Speeds: 1 Hazardous Location: DIVISION 2 T2B
!
