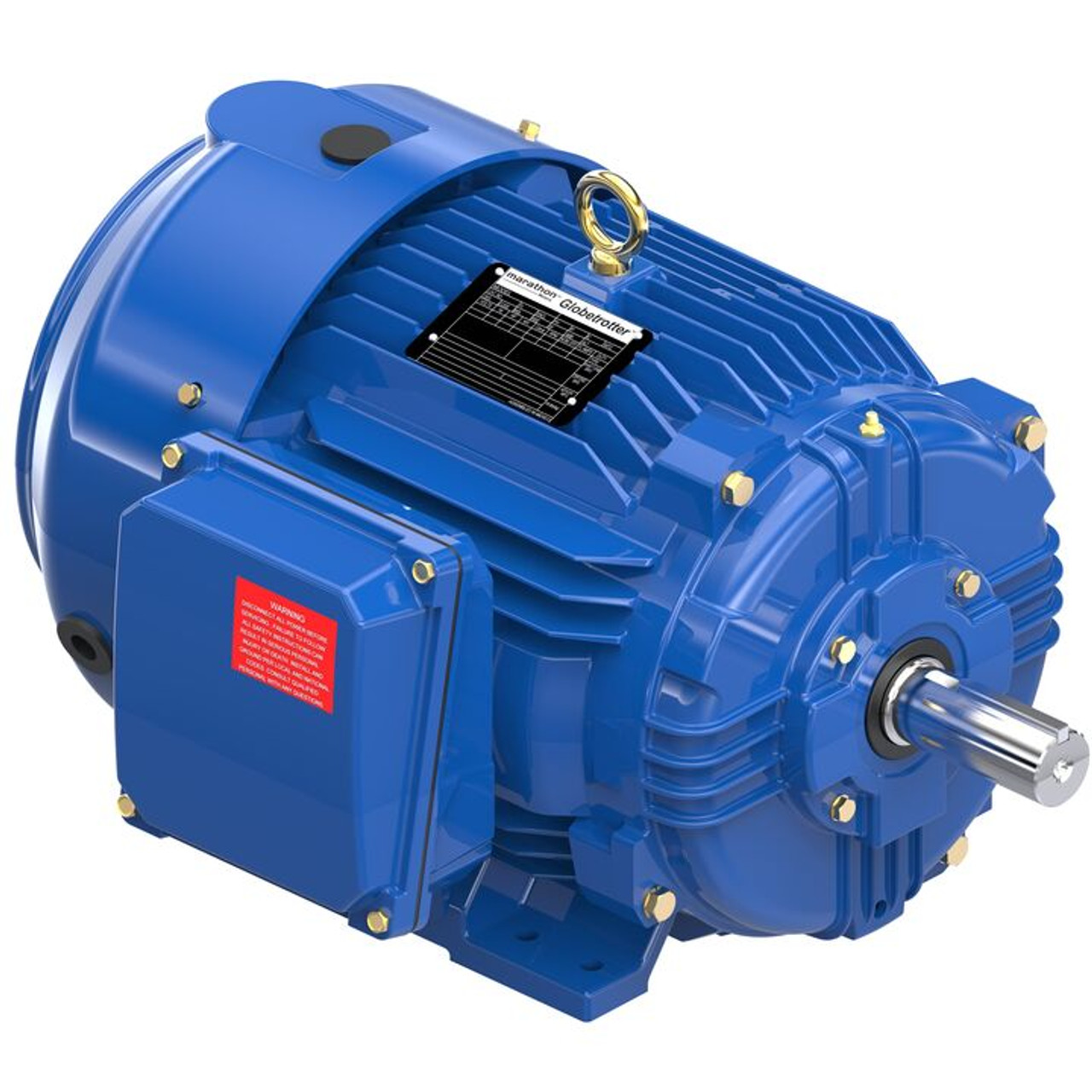

W539B-P, 10 HP, 3 Ph, 60 Hz, 460 V, 1800 RPM, 215T Frame, TEFC, XRI®-841 Severe Duty Motor, 215THFCD9037

W539B-P, 10 HP, 3 Ph, 60 Hz, 460 V, 1800 RPM, 215T Frame, TEFC, XRI®-841 Severe Duty Motor, 215THFCD9037

$1,658.59
(No reviews yet) Write a Review
SKU:
W539B-P
Output HP:
10 Hp
Output KW:
7.5 kW
Voltage:
460 V
Phase:
3
Speed (RPM):
1762 rpm
Frame Size:
215T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
W539B-P.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 10 Hp
Output KW: 7.5 kW Voltage: 460 V
Speed: 1762 rpm Service Factor: 1.15
Frame: 215T Thermal Protection: No Protection
Efficiency: 91.7 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 12.5 A
Power Factor: 81.3 Duty: Continuous
Insulation Class: H Design Code: B
KVA Code: H Drive End Bearing Size: 6308
Opp Drive End Bearing Size: 6208 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 56
Number of Speeds: 1



!
