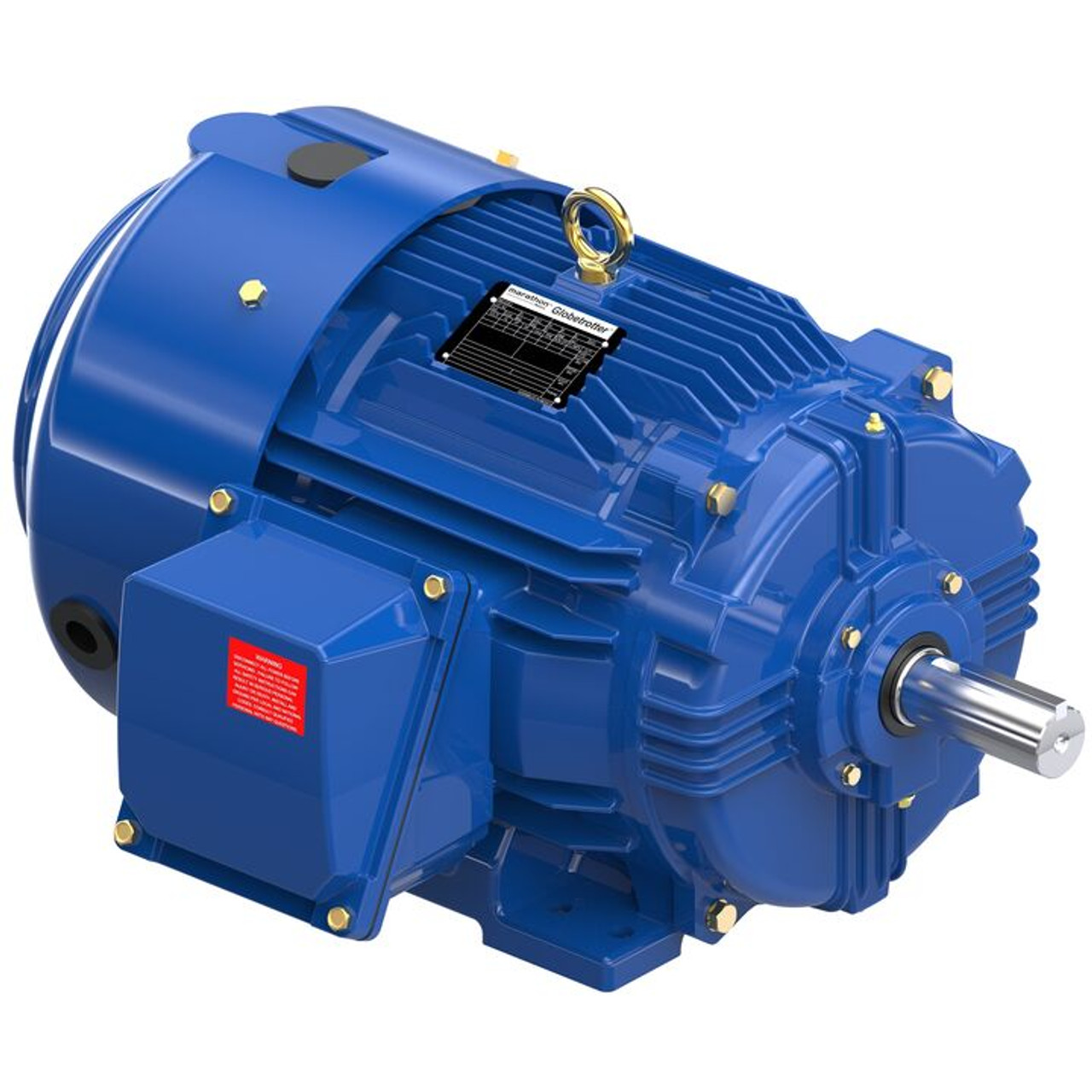

Nameplate Specifications
| Phase: 3 | Output HP: 7.50 Hp |
| Output KW: 5.6 kW | Voltage: 460 V |
| Speed: 1182 rpm | Service Factor: 1.15 |
| Frame: 254T | Thermal Protection: No Protection |
| Efficiency: 91 % | Ambient Temperature: 40 °C |
| Frequency: 60 Hz | Current: 9.9 A |
| Power Factor: 78.5 | Duty: Continuous |
| Insulation Class: H | Design Code: B |
| KVA Code: H | Drive End Bearing Size: 6309 |
| Opp Drive End Bearing Size: 6209 | Enclosure: Totally Enclosed Fan Cooled |
| UL: Listed | CSA: Y |
| CE: Y | IP Code: 56 |
| Number of Speeds: 1 | Hazardous Location: DIVISION 2 T2B |
