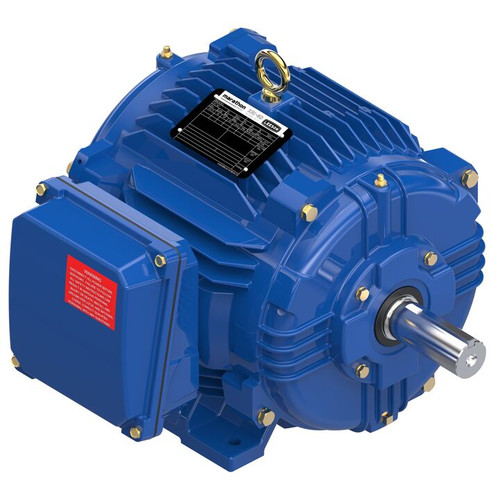

W530B, 7.50 HP, 3 Ph, 60 Hz, 460 V, 3600 RPM, 213T Frame, TENV, XRI®-841 Severe Duty Motor, 213THTCD9001

W530B, 7.50 HP, 3 Ph, 60 Hz, 460 V, 3600 RPM, 213T Frame, TENV, XRI®-841 Severe Duty Motor, 213THTCD9001

$1,357.25
(No reviews yet) Write a Review
SKU:
W530B
Output HP:
7.5 Hp
Output KW:
5.6 kW
Voltage:
460 V
Phase:
3
Speed (RPM):
3526 rpm
Frame Size:
213T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Non Ventilated
Product Drawings1:
W530B.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 7.50 Hp
Output KW: 5.6 kW Voltage: 460 V
Speed: 3526 rpm Service Factor: 1.15
Frame: 213T Thermal Protection: No Protection
Efficiency: 91.7 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 8.6 A
Power Factor: 88 Duty: Continuous
Insulation Class: H Design Code: B
KVA Code: H Drive End Bearing Size: 6308
Opp Drive End Bearing Size: 6208 Enclosure: Totally Enclosed Non Ventilated
UL: Listed CSA: Y
CE: Y IP Code: 56
Number of Speeds: 1 Hazardous Location: DIVISION 2 T2B



!
