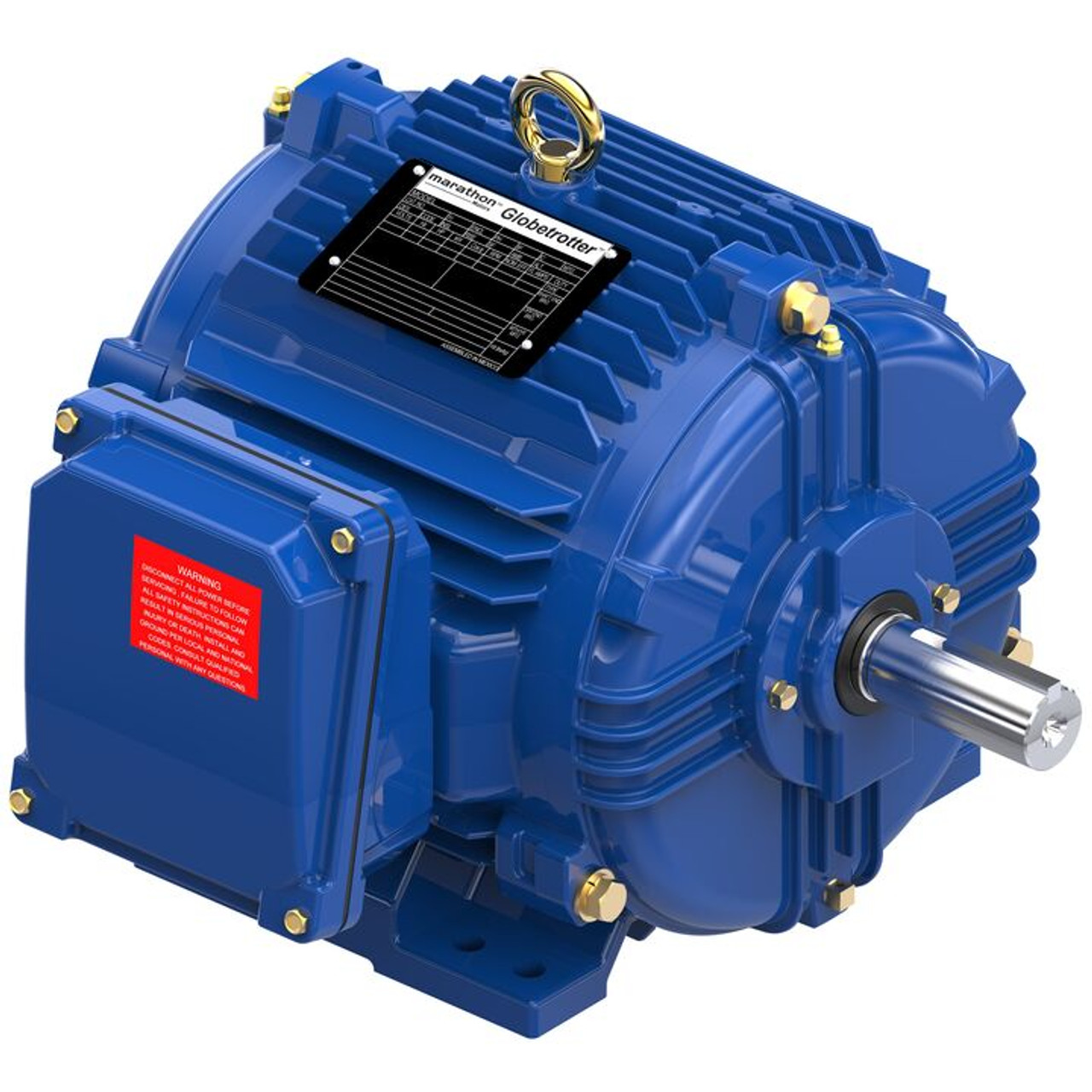

W509A, 1.50 HP, 3 Ph, 60 Hz, 460 V, 1200 & 1200 RPM, 182T Frame, TENV, XRI®-841 Severe Duty Motor, 182THTCD9076

W509A, 1.50 HP, 3 Ph, 60 Hz, 460 V, 1200 & 1200 RPM, 182T Frame, TENV, XRI®-841 Severe Duty Motor, 182THTCD9076

$898.53
(No reviews yet) Write a Review
SKU:
W509A
Output HP:
1.5 Hp
Output KW:
1.1 kW
Voltage:
460 V
Phase:
3
Speed (RPM):
1175 rpm
Frame Size:
182T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Non Ventilated
Product Drawings1:
W509A.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 1.50 Hp
Output KW: 1.1 kW Voltage: 460 V
Speed: 1175 rpm Service Factor: 1.15
Frame: 182T Thermal Protection: No Protection
Efficiency: 87.5 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 2.3 A
Power Factor: 70 Duty: Continuous
Insulation Class: H Design Code: B
KVA Code: L Drive End Bearing Size: 6206
Opp Drive End Bearing Size: 6205 Enclosure: Totally Enclosed Non Ventilated
UL: Listed CSA: Y
CE: Y IP Code: 56
Number of Speeds: 1 Hazardous Location: DIVISION 2 T2B



!
