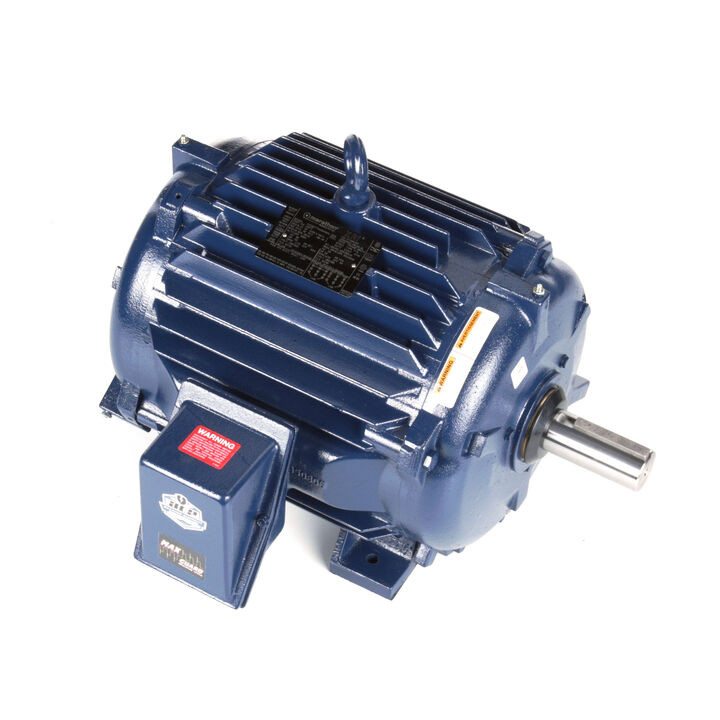

U1873A, 25 & 20 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 284TV Frame, TEAO, XRI퉌¬-SD Cooling Tower Motor, 284TTTCD16540

U1873A, 25 & 20 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 284TV Frame, TEAO, XRI퉌¬-SD Cooling Tower Motor, 284TTTCD16540

Marathon Electric

$3,300.96
(No reviews yet) Write a Review
SKU:
U1873A
Output HP:
25 Hp
Output KW:
18.7 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1772 rpm
Frame Size:
284TV
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Air Over
Product Drawings1:
U1873A.pdf
Manufacture:
Marathon
MAP Policy:
Yes
Adding to cart… The item has been added

Add to Cart for Discount

Nameplate Specifications

Phase: 3 Output HP: 25 & 20 Hp
Output KW: 18.7 & 14.9 kW Voltage: 230/460 & 190/380 V
Speed: 1772 & 1475 rpm Service Factor: 1.15 & 1.15
Frame: 284TV Thermal Protection: No Protection
Efficiency: 93.6 & 92.7 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 60/30 & 58/29 A
Power Factor: 83 Duty: Continuous
Insulation Class: H Design Code: B
KVA Code: G Drive End Bearing Size: 6311
Opp Drive End Bearing Size: 6211 Enclosure: Totally Enclosed Air Over
UL: Recognized CSA: Y
CE: Y IP Code: 56
Number of Speeds: 1
!
