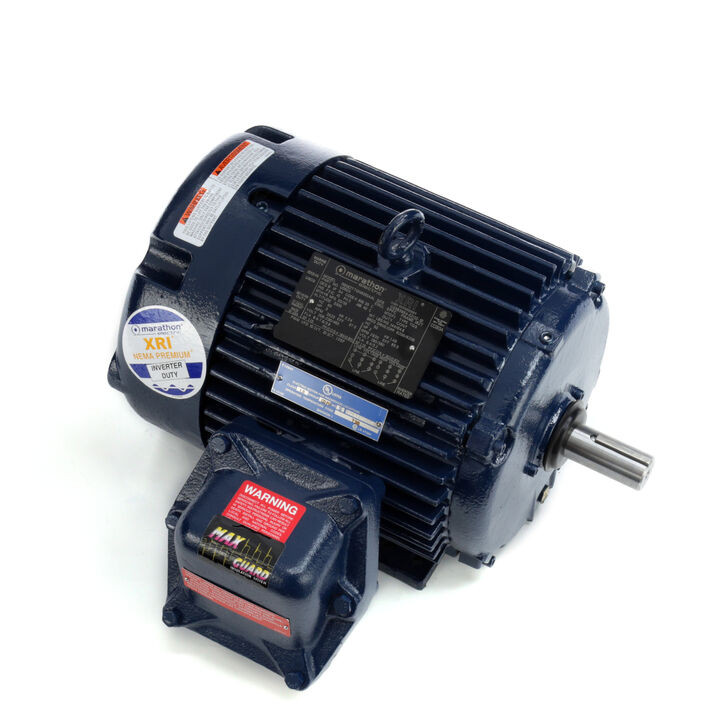

U060B, 3 & 2 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 182T Frame, EPFC, Hazardous Duty® Explosion Proof Motor, 182TTGCD6501

U060B, 3 & 2 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 182T Frame, EPFC, Hazardous Duty® Explosion Proof Motor, 182TTGCD6501

$1,016.87
(No reviews yet) Write a Review
SKU:
U060B
Output HP:
3 Hp
Output KW:
2.2 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
3525 rpm
Frame Size:
182T
Mounting:
Rigid Base
Enclosure:
Explosion Proof Fan Cooled
Product Drawings1:
U060B.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 3 & 2 Hp
Output KW: 2.2 & 1.5 kW Voltage: 230/460 & 190/380 V
Speed: 3535 & 2935 rpm Service Factor: 1.0 & 1.0
Frame: 182T Thermal Protection: Thermostat
Efficiency: 86.5 & 84 % Ambient Temperature: 50 °C
Frequency: 60 & 50 Hz Current: 8/4 & 6.8/3.4 A
Power Factor: 82 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: K Drive End Bearing Size: 6206
Opp Drive End Bearing Size: 6206 Enclosure: Explosion Proof Fan cooled
UL: UL Listed And CSA Certified CSA: Y
CE: N IP Code: 54
Number of Speeds: 1 Hazardous Location: DIV 1 EXP PROOF CL I GR CD CL II GR FG T3C



!
