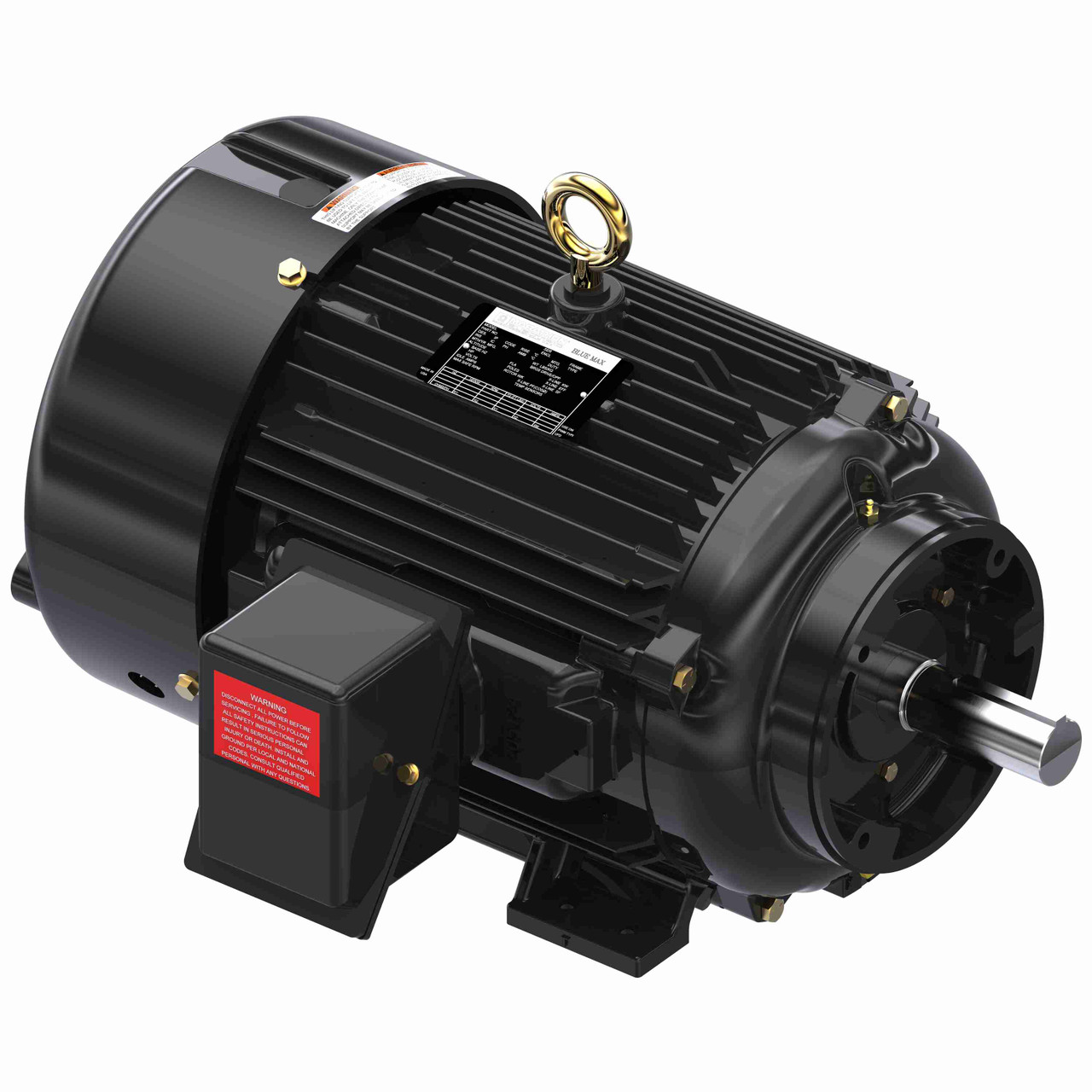

Nameplate Specifications
| Phase: | 3 | Output HP: | 15 Hp |
| Output KW: | 11.2 kW | Voltage: | 460 V |
| Speed: | 1800 rpm | Service Factor: | 1 |
| Frame: | 254TC | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | Thermostat | Efficiency: | 94 % |
| Ambient Temperature: | 40 °C | Frequency: | 120 Hz |
| Current: | 18.0 A | Power Factor: | 80 |
| Duty: | Continuous | Insulation Class: | H |
| Design Code: | No Design Code | KVA Code: | N/A |
| Drive End Bearing Size: | 6309 | Opp Drive End Bearing Size: | 6210 |
| UL: | Recognized | CSA: | Y |
| CE: | N | IP Code: | 54 |
| Number of Speeds: | 1 |
