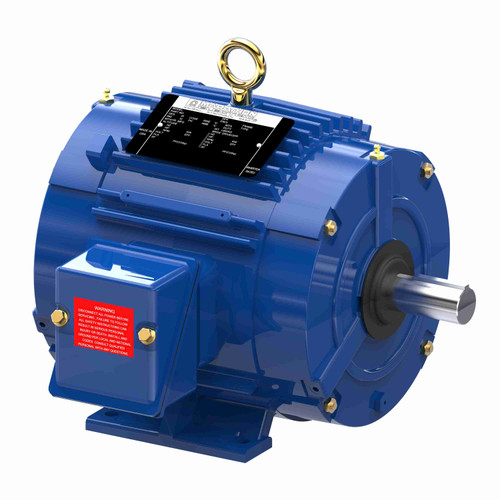

S504, 2 Hp, 1200 Rpm, 184T FR, 460 Vac, 3 PH, Kiln Duty, XRI Efficiency, Blue Chip Severe Duty, TEAO, Rigid Base, 184TTTS18577.

S504, 2 Hp, 1200 Rpm, 184T FR, 460 Vac, 3 PH, Kiln Duty, XRI Efficiency, Blue Chip Severe Duty, TEAO, Rigid Base, 184TTTS18577.

$1,528.66
(No reviews yet) Write a Review
SKU:
S504
Output HP:
2 Hp
Output KW:
1.5 kW
Voltage:
460 V
Phase:
3
Speed (RPM):
1170 rpm
Frame Size:
184T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Air Over
Product Drawings1:
S504.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 2 Hp
Output KW: 1.5 kW Voltage: 460 V
Speed: 1170 rpm Service Factor: 1.15
Frame: 184T Enclosure: Totally Enclosed Air Over
Thermal Protection: Thermostat Efficiency: 87.5 %
Ambient Temperature: 90 °C Frequency: 60 Hz
Current: 3.0 A Power Factor: 74
Duty: Continuous Insulation Class: H
Design Code: B KVA Code: J
Drive End Bearing Size: 6206 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: N IP Code: 54
Number of Speeds: 1
!
