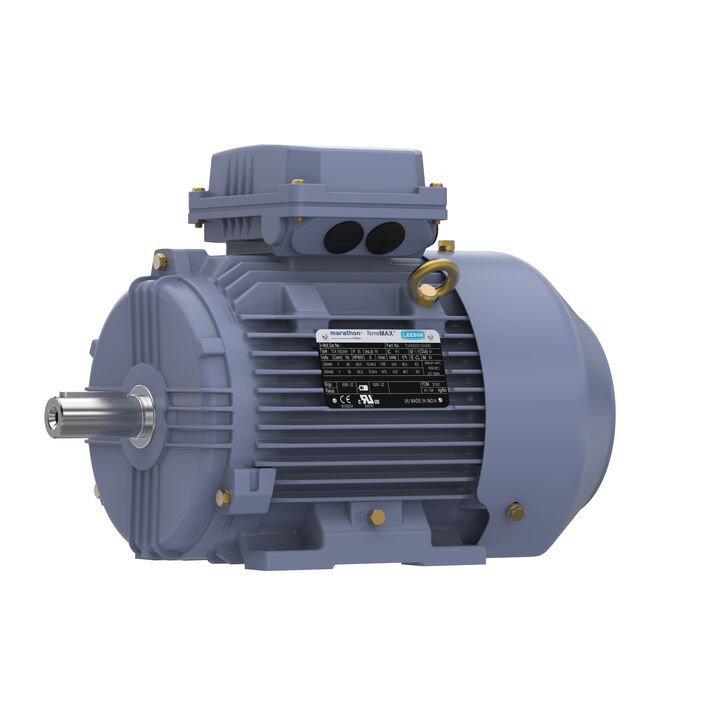

R838, 20 & 15 HP, 3 Ph, 60 & 50 Hz, 230/460 & 200/400 V, 1200 & 1000 RPM, 180L Frame, TEFC, TerraMAX® Cast Iron Motor, TCA0153AE231GAA009

R838, 20 & 15 HP, 3 Ph, 60 & 50 Hz, 230/460 & 200/400 V, 1200 & 1000 RPM, 180L Frame, TEFC, TerraMAX® Cast Iron Motor, TCA0153AE231GAA009

$3,847.27
(No reviews yet) Write a Review
SKU:
R838
Output HP:
20 Hp
Output KW:
15 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1180 rpm
Frame Size:
160L
Mounting:
B3
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
R838.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 20 & 15 Hp
Output KW: 15.0 & 11.0 kW Voltage: 230/460 & 200/400 V
Speed: 1180 & 985 rpm Service Factor: 1.15 & 1.15
Frame: 180L Thermal Protection: No Protection
Efficiency: 91.7 & 90.3 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 53.5/26.7 & 48/24.1 A
Power Factor: 77 Duty: Continuous
Insulation Class: F Design Code: N (IEC)
KVA Code: F Drive End Bearing Size: 6311
Opp Drive End Bearing Size: 6211 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: N
CE: Y IP Code: 55
Number of Speeds: 1 Efficiency Class: IE3
!
