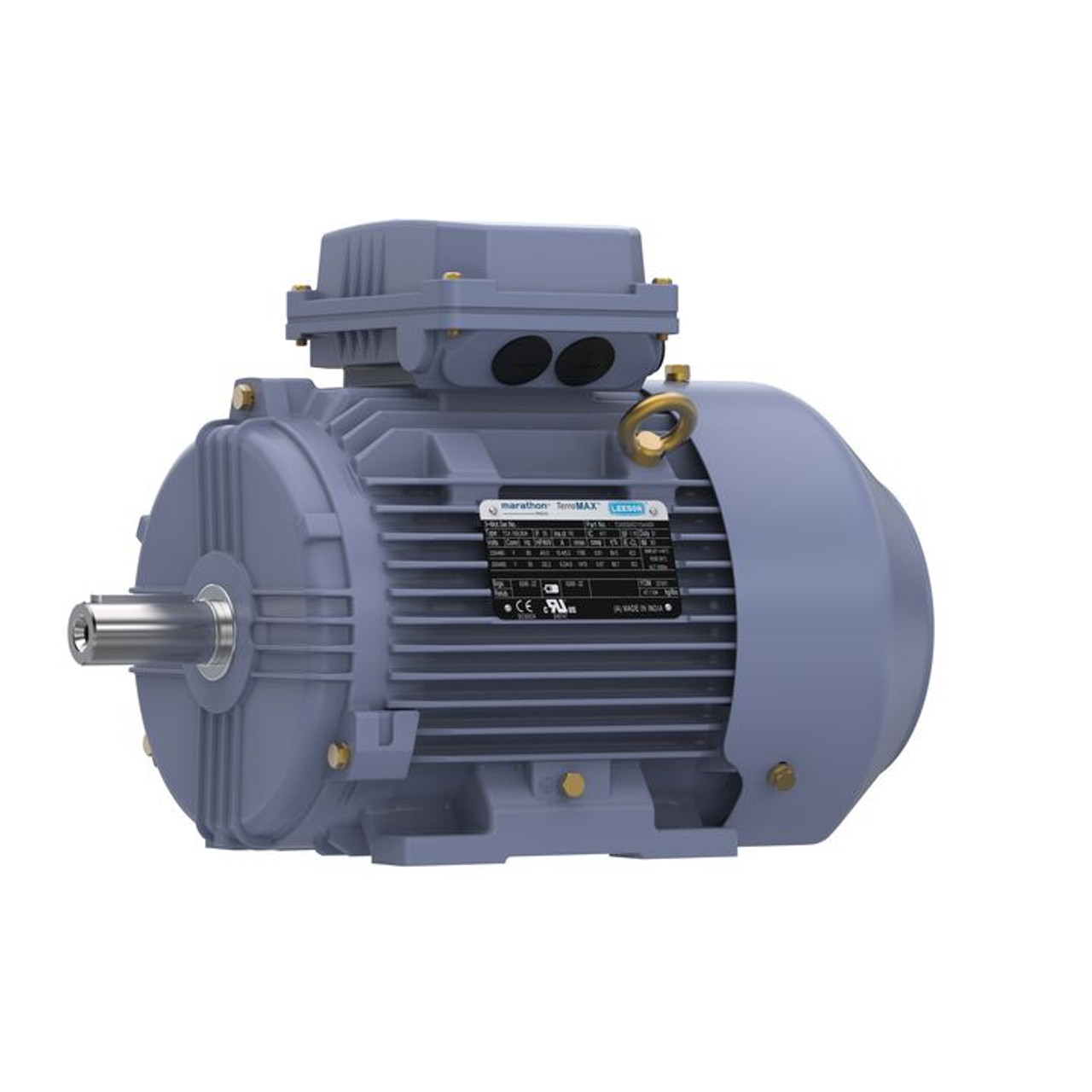

R832, 10 & 7.50 HP, 3 Ph, 60 & 50 Hz, 230/460 & 200/400 V, 1200 & 1000 RPM, 160M Frame, TEFC, TerraMAX® Cast Iron Motor, TCA7P53AE231GAA009

R832, 10 & 7.50 HP, 3 Ph, 60 & 50 Hz, 230/460 & 200/400 V, 1200 & 1000 RPM, 160M Frame, TEFC, TerraMAX® Cast Iron Motor, TCA7P53AE231GAA009

$2,258.83
(No reviews yet) Write a Review
SKU:
R832
Output HP:
10 Hp
Output KW:
7.5 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1180 rpm
Frame Size:
160M
Mounting:
B3
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
R832.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 10 & 7.50 Hp
Output KW: 7.5 & 5.5 kW Voltage: 230/460 & 200/400 V
Speed: 1180 & 985 rpm Service Factor: 1.15 & 1.15
Frame: 160M Thermal Protection: No Protection
Efficiency: 91 & 88 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 26.4/13.2 & 23.4/11.7 A
Power Factor: 78 Duty: Continuous
Insulation Class: F Design Code: N (IEC)
KVA Code: G Drive End Bearing Size: 6309
Opp Drive End Bearing Size: 6209 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: N
CE: Y IP Code: 55
Number of Speeds: 1 Efficiency Class: IE3
!
