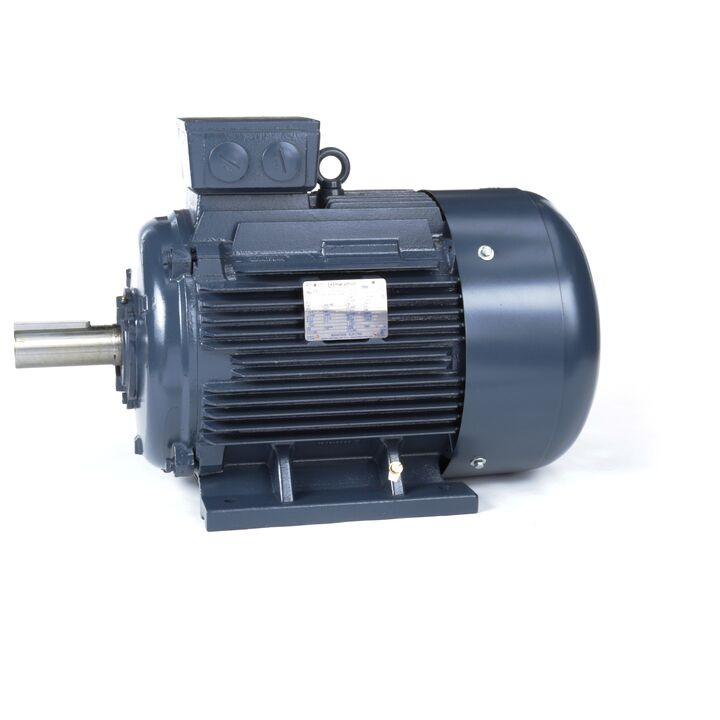

R504, 75 & 60 HP, 3 Ph, 60 & 50 Hz, 230/460 & 200/400 V, 1800 & 1500 RPM, 250M Frame, TEFC, Globetrotter® IEC Cast Iron Motor, 250MTFC6526

R504, 75 & 60 HP, 3 Ph, 60 & 50 Hz, 230/460 & 200/400 V, 1800 & 1500 RPM, 250M Frame, TEFC, Globetrotter® IEC Cast Iron Motor, 250MTFC6526

$15,169.00
(No reviews yet) Write a Review
SKU:
R504
Output HP:
75 Hp
Output KW:
56 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1785 rpm
Frame Size:
250M
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
R504.pdf
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 75 & 60 Hp
Output KW: 56.0 & 45.0 kW Voltage: 230/460 & 200/400 V
Speed: 1785 & 1488 rpm Service Factor: 1.15 & 1.15
Frame: 250M Thermal Protection: No Protection
Efficiency: 95.4 & 95 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 174/87 & 164/82 A
Power Factor: 84.5 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6316
Opp Drive End Bearing Size: 6313 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 55
Number of Speeds: 1
!
