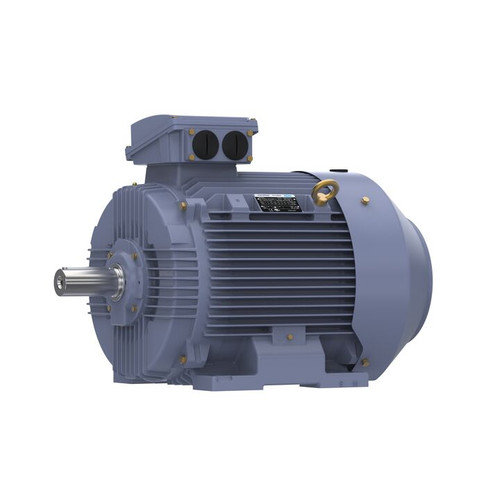

R350B, 50 & 40 HP, 3 Ph, 60 & 50 Hz, 230/460 & 200/400 V, 1200 & 1000 RPM, 250M Frame, TEFC, Cast Iron Motor, TCA0373AE211GAA009

R350B, 50 & 40 HP, 3 Ph, 60 & 50 Hz, 230/460 & 200/400 V, 1200 & 1000 RPM, 250M Frame, TEFC, Cast Iron Motor, TCA0373AE211GAA009

$8,887.09
(No reviews yet) Write a Review
SKU:
R350B
Output HP:
50 Hp
Output KW:
37 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1190 rpm
Frame Size:
250M
Mounting:
B3
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
R350B.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 50 & 40 Hp
Output KW: 37.0 & 30.0 kW Voltage: 230/460 & 200/400 V
Speed: 1190 & 990 rpm Service Factor: 1.15 & 1.15
Frame: 250M Thermal Protection: No Protection
Efficiency: 94.1 & 92.9 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 124/62 & 120/60 A
Power Factor: 80 Duty: Continuous
Insulation Class: F Design Code: N (IEC)
KVA Code: J Drive End Bearing Size: 6314
Opp Drive End Bearing Size: 6314 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: N
CE: Y IP Code: 55
Number of Speeds: 1 Efficiency Class: IE3
!
