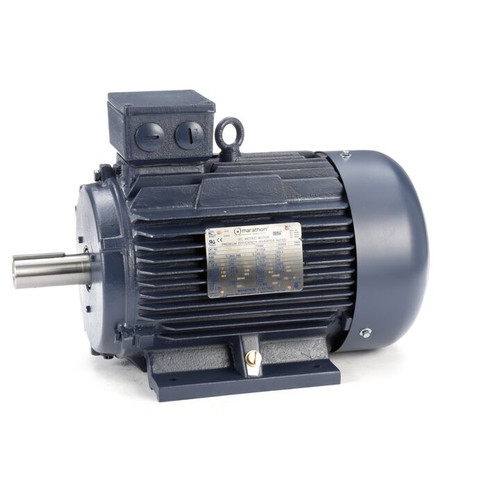

R326A, 5.50 & 4 HP, 3 Ph, 60 & 50 Hz, 230/460 & 200/400 V, 1200 & 1000 RPM, 132M Frame, TEFC, Globetrotter® IEC Cast Iron Motor, 132MTFC6586

R326A, 5.50 & 4 HP, 3 Ph, 60 & 50 Hz, 230/460 & 200/400 V, 1200 & 1000 RPM, 132M Frame, TEFC, Globetrotter® IEC Cast Iron Motor, 132MTFC6586

$2,530.00
(No reviews yet) Write a Review
SKU:
R326A
Output HP:
5.5 Hp
Output KW:
4.1 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1180 rpm
Frame Size:
132M
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
R326A.pdf
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 5.50 & 4 Hp
Output KW: 4.1 & 3.0 kW Voltage: 230/460 & 200/400 V
Speed: 1180 & 985 rpm Service Factor: 1.15 & 1.15
Frame: 132M Thermal Protection: No Protection
Efficiency: 89.5 & 88.5 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 17/8.5 & 15.6/7.8 A
Power Factor: 69 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: J Drive End Bearing Size: 6308
Opp Drive End Bearing Size: 6207 Enclosure: Totally Enclosed Fan Cooled
UL: No CSA: Y
CE: Y IP Code: 55
Number of Speeds: 1
!
