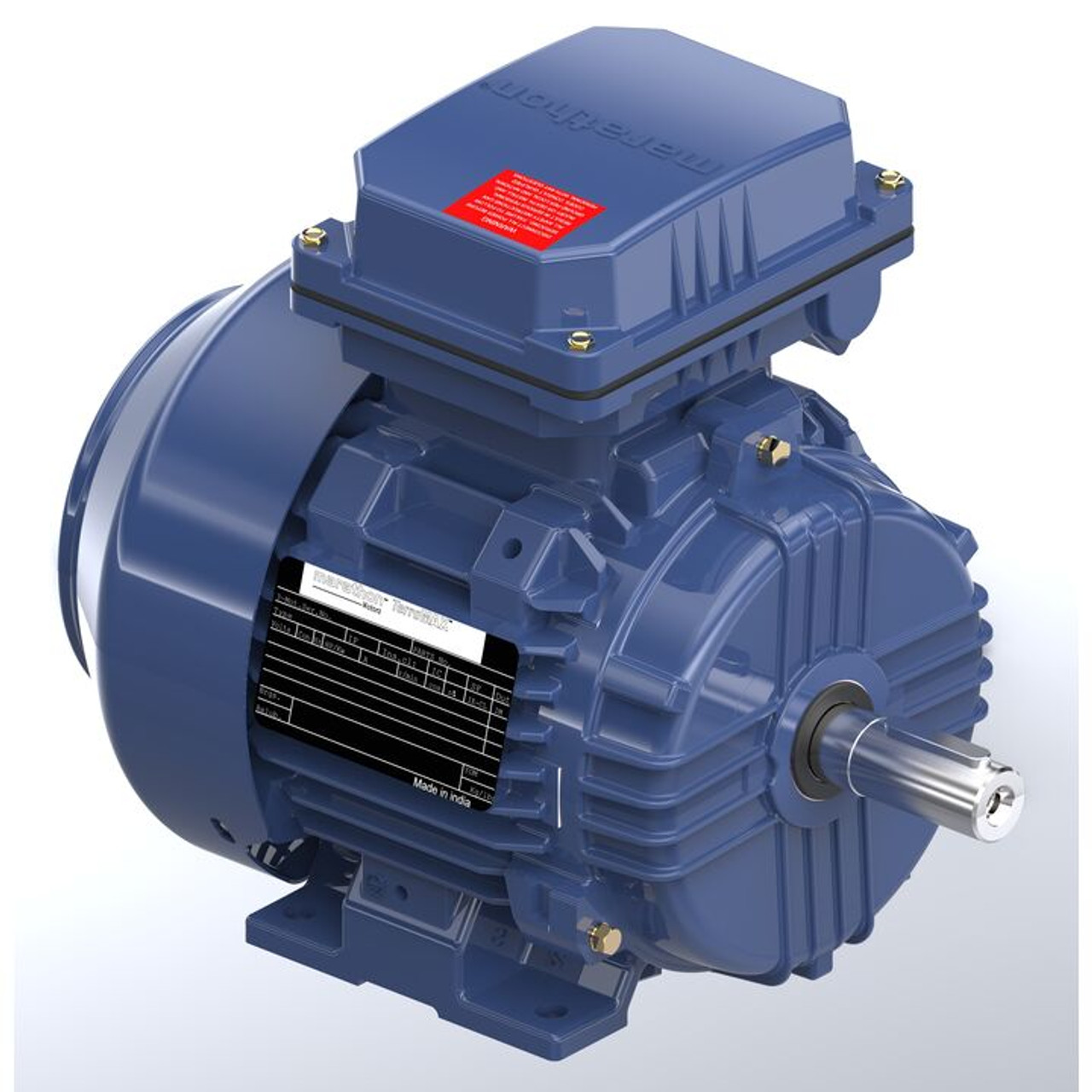

R314B, 1 HP, 3 Ph, 60 Hz, 230/460 V, 1200 RPM, 90S Frame, TEFC, Cast Iron Motor, TCAP753AE211GAA009

R314B, 1 HP, 3 Ph, 60 Hz, 230/460 V, 1200 RPM, 90S Frame, TEFC, Cast Iron Motor, TCAP753AE211GAA009

Marathon Electric

$543.03
(No reviews yet) Write a Review
SKU:
R314B
Output HP:
1 Hp
Output KW:
0.75 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1148 rpm
Frame Size:
90S
Mounting:
B3
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
R314B.pdf
Manufacture:
Marathon
MAP Policy:
Yes
Adding to cart… The item has been added

Add to Cart for Discount

Nameplate Specifications

Phase: 3 Output HP: 1 Hp
Output KW: 0.75 kW Voltage: 230/460 V
Speed: 1148 rpm Service Factor: 1.15
Frame: 90S Thermal Protection: No Protection
Efficiency: 82.5 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 3.4/1.7 A
Power Factor: 68 Duty: Continuous
Insulation Class: F Design Code: N (IEC)
KVA Code: E Drive End Bearing Size: 6205
Opp Drive End Bearing Size: 6205 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: N
CE: Y IP Code: 55
Number of Speeds: 1



!
