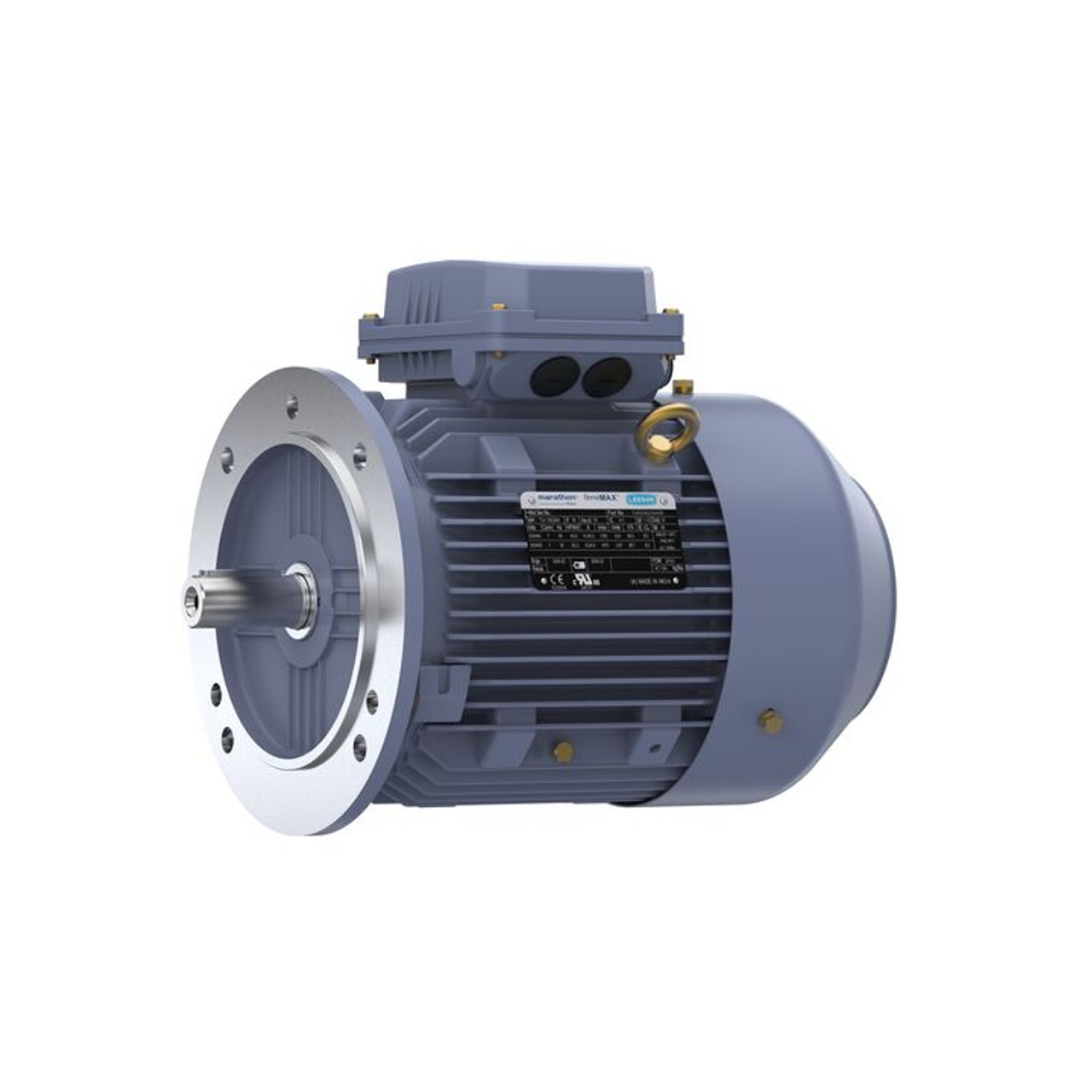

R222, 3 & 2 HP, 3 Ph, 60 & 50 Hz, 230/460 & 200/400 V, 1800 & 1500 RPM, 100L Frame, TEFC, Cast Iron Motor, TCA2P22AE221GAA009

R222, 3 & 2 HP, 3 Ph, 60 & 50 Hz, 230/460 & 200/400 V, 1800 & 1500 RPM, 100L Frame, TEFC, Cast Iron Motor, TCA2P22AE221GAA009

$584.38
(No reviews yet) Write a Review
SKU:
R222
Output HP:
3 Hp
Output KW:
2.2 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1770 rpm
Frame Size:
100L
Mounting:
Round
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
R222.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 3 & 2 Hp
Output KW: 2.2 & 1.5 kW Voltage: 230/460 & 200/400 V
Speed: 1770 & 1475 rpm Service Factor: 1.15 & 1.15
Frame: 100L Thermal Protection: No Protection
Efficiency: 89.5 & 85.3 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 7.8/3.9 & 7/3.5 A
Power Factor: 80 Duty: Continuous
Insulation Class: F Design Code: N (IEC)
KVA Code: M Drive End Bearing Size: 6206
Opp Drive End Bearing Size: 6206 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: N
CE: Y IP Code: 55
Number of Speeds: 1 Efficiency Class: IE3
!
