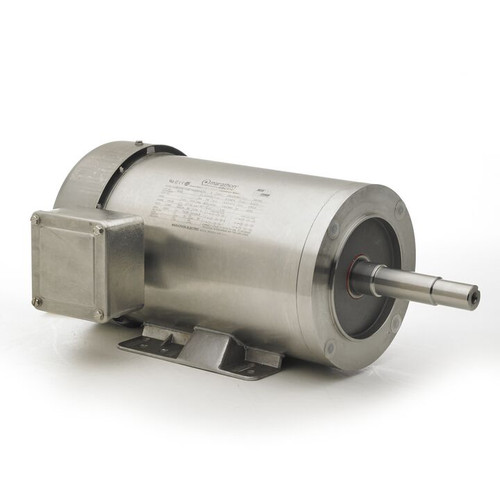

N160, 7.50 & 5 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 213JM Frame, TEFC, PowerWashâ„¢SXT-Plus Wash Down Dutyâ„¢ General Purpose Motor, 213TTWD14002

N160, 7.50 & 5 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 213JM Frame, TEFC, PowerWashâ„¢SXT-Plus Wash Down Dutyâ„¢ General Purpose Motor, 213TTWD14002

$2,687.05
(No reviews yet) Write a Review
SKU:
N160
Output HP:
7.5 Hp
Output KW:
5.6 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
3530 rpm
Frame Size:
213JM
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
N160.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 7.50 & 5 Hp
Output KW: 5.6 & 3.7 kW Voltage: 230/460 & 190/380 V
Speed: 3530 & 2940 rpm Service Factor: 1.15 & 1.15
Frame: 213JM Thermal Protection: No Protection
Efficiency: 88.5 & 89.5 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 18.4/9.2 & 15/7.5 A
Power Factor: 85.5 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6209
Opp Drive End Bearing Size: 6207 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 56
Number of Speeds: 1



!
