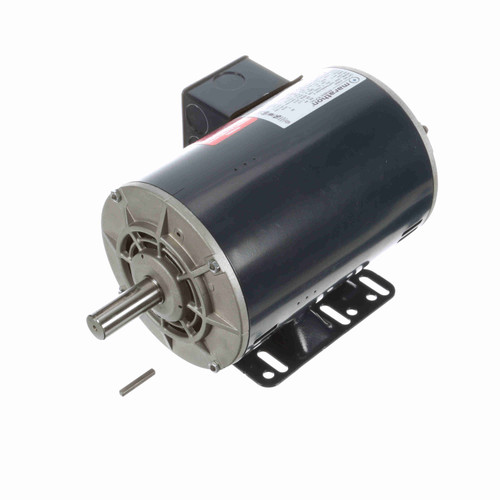

Marathon Electric E783A, 1 1/2 Hp, 3600 Rpm, 143T FR, 230/460 V, 3 PH, Dripproof, Rigid Base, General Purpose, No Over Load, EPAct Efficient, 143TTDR6313.

Marathon Electric E783A, 1 1/2 Hp, 3600 Rpm, 143T FR, 230/460 V, 3 PH, Dripproof, Rigid Base, General Purpose, No Over Load, EPAct Efficient, 143TTDR6313.

$482.40
(No reviews yet) Write a Review
SKU:
E783A
Output HP:
1.5 & 1 Hp
Output KW:
1.1 & 0.75 kW
Voltage:
230/460 & 190/380 V
Phase:
3
Speed (RPM):
3515 & 2920 rpm
Frame Size:
143T
Mounting:
Rigid Base
Enclosure:
Drip Proof
Product Drawings1:
E783A.pdf
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 1.50 & 1 Hp
Output KW: 1.1 & 0.75 kW Voltage: 230/460 & 190/380 V
Speed: 3515 & 2920 rpm Service Factor: 1.15 & 1.15
Frame: 143T Enclosure: Drip Proof
Thermal Protection: No Protection Efficiency: 86.5 & 86.5 %
Ambient Temperature: 40 °C Frequency: 60 & 50 Hz
Current: 3.8/1.9 & 3.4/1.7 A Power Factor: 84
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: L
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 22
Number of Speeds: 1
!
