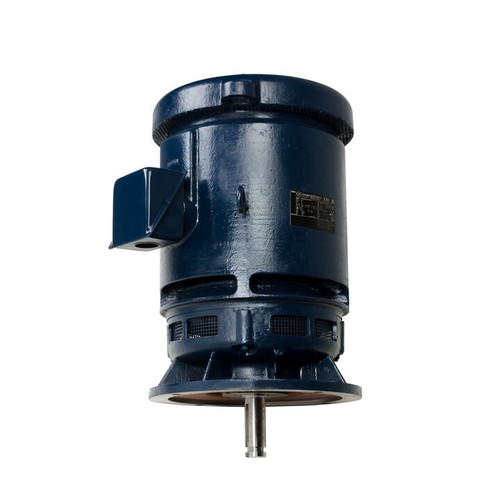

M746, 100 HP, 3 Ph, 60 Hz, 230/460 V, 1800 RPM, 404HPV Frame, DP, Vertical Pump Motor, 404TTDS16332

M746, 100 HP, 3 Ph, 60 Hz, 230/460 V, 1800 RPM, 404HPV Frame, DP, Vertical Pump Motor, 404TTDS16332

$9,706.32
(No reviews yet) Write a Review
SKU:
M746
Output HP:
100 Hp
Output KW:
75 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1785 rpm
Frame Size:
404HPV
Mounting:
Round
Enclosure:
Drip Proof
Product Drawings1:
M746.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 100 Hp
Output KW: 75 kW Voltage: 230/460 V
Speed: 1785 rpm Service Factor: 1.15
Frame: 404HPV Thermal Protection: No Protection
Efficiency: 95.4 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 226.0/113.0 A
Power Factor: 86 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6314
Opp Drive End Bearing Size: 7314 Enclosure: Drip Proof
UL: Recognized CSA: Y
CE: Y IP Code: 22
Number of Speeds: 1



!
