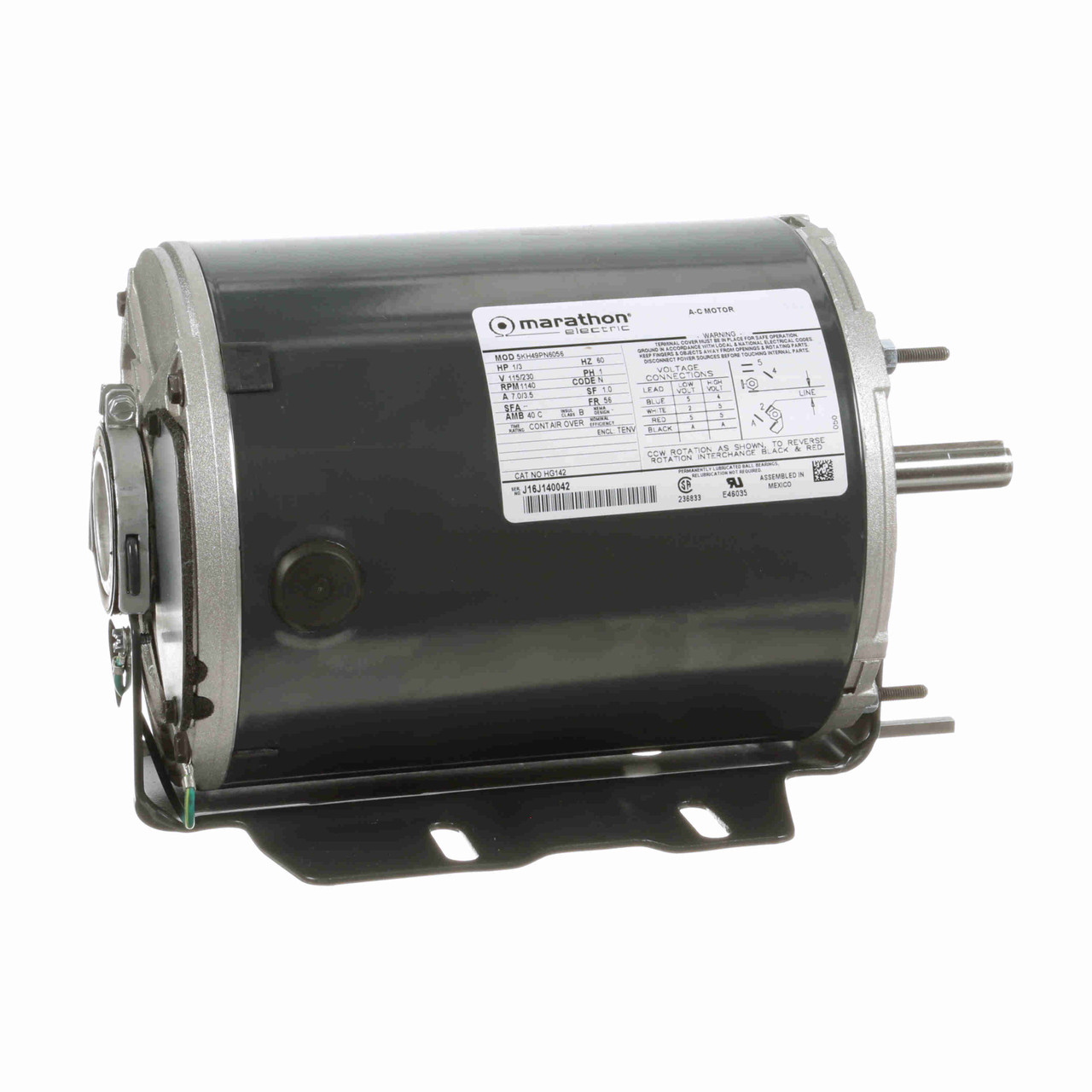

HG142, 1/3 Hp, 1200 Rpm, 56 FR, 115/230 Vac, 1 PH, TEAO, Resilient Base-Thru Bolt, Farm Duty, No Overload, 5KH49PN6056.

HG142, 1/3 Hp, 1200 Rpm, 56 FR, 115/230 Vac, 1 PH, TEAO, Resilient Base-Thru Bolt, Farm Duty, No Overload, 5KH49PN6056.

$432.00
(No reviews yet) Write a Review
SKU:
HG142
Output HP:
0.33 Hp
Output KW:
0.25 kW
Voltage:
115/230 V
Phase:
1
Speed (RPM):
1140 rpm
Frame Size:
56
Mounting:
Resilient Base-Thru Bolt
Enclosure:
TEAO
Product Drawings1:
HG142.pdf
Adding to cart… The item has been added

Nameplate Specifications

Phase: 1 Output HP: 0.33 Hp
Output KW: 0.25 kW Voltage: 115/230 V
Speed: 1140 rpm Service Factor: 1
Frame: 56 Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: No Protection Efficiency: 53 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 7.0,3.5 A Power Factor: 0
Duty: Continuous Insulation Class: B
KVA Code: N Drive End Bearing Size: 6203
Opp Drive End Bearing Size: 6203 UL: Recognized
CSA: Yes CE: N
!
