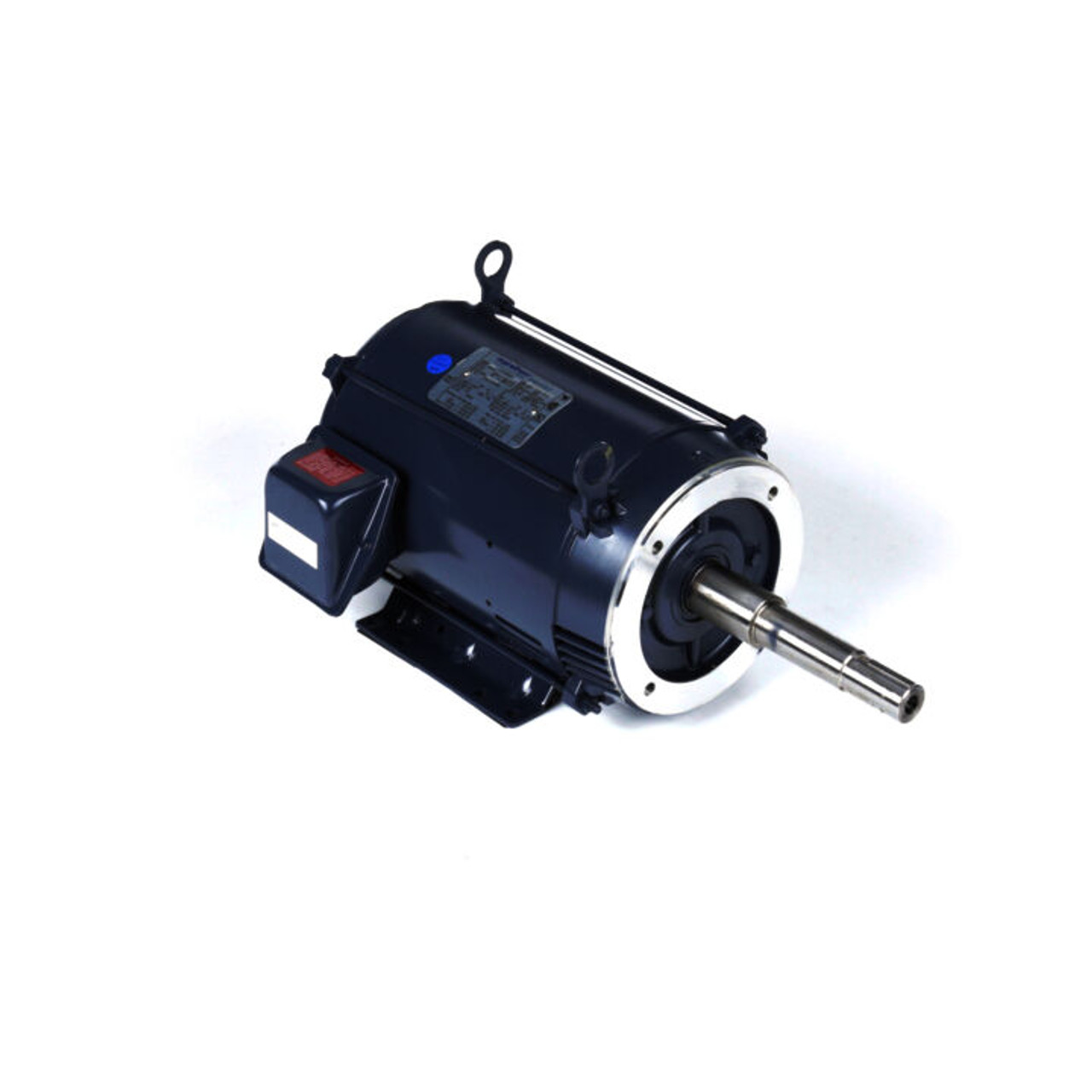

GT2505A, 1.50 HP, 3 Ph, 60 Hz, 575 V, 1200 & 1200 RPM, 182JP Frame, DP, Globetrotter® Close-Coupled Pump Motor, 182TTDBD6095

GT2505A, 1.50 HP, 3 Ph, 60 Hz, 575 V, 1200 & 1200 RPM, 182JP Frame, DP, Globetrotter® Close-Coupled Pump Motor, 182TTDBD6095

$561.81
(No reviews yet) Write a Review
SKU:
GT2505A
Output HP:
1.5 Hp
Output KW:
1.1 kW
Voltage:
575 V
Phase:
3
Speed (RPM):
1180 rpm
Frame Size:
182JP
Mounting:
Rigid Base
Enclosure:
Drip Proof
Product Drawings1:
GT2505A.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 1.50 Hp
Output KW: 1.1 kW Voltage: 575 V
Speed: 1180 rpm Service Factor: 1.15
Frame: 182JP Thermal Protection: No Protection
Efficiency: 86.5 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 1.9 A
Power Factor: 70 Duty: Continuous
Insulation Class: F Design Code: A
KVA Code: N Drive End Bearing Size: 6307
Opp Drive End Bearing Size: 6205 Enclosure: Drip Proof
UL: Recognized CSA: Y
CE: Y IP Code: 22
Number of Speeds: 1



!
