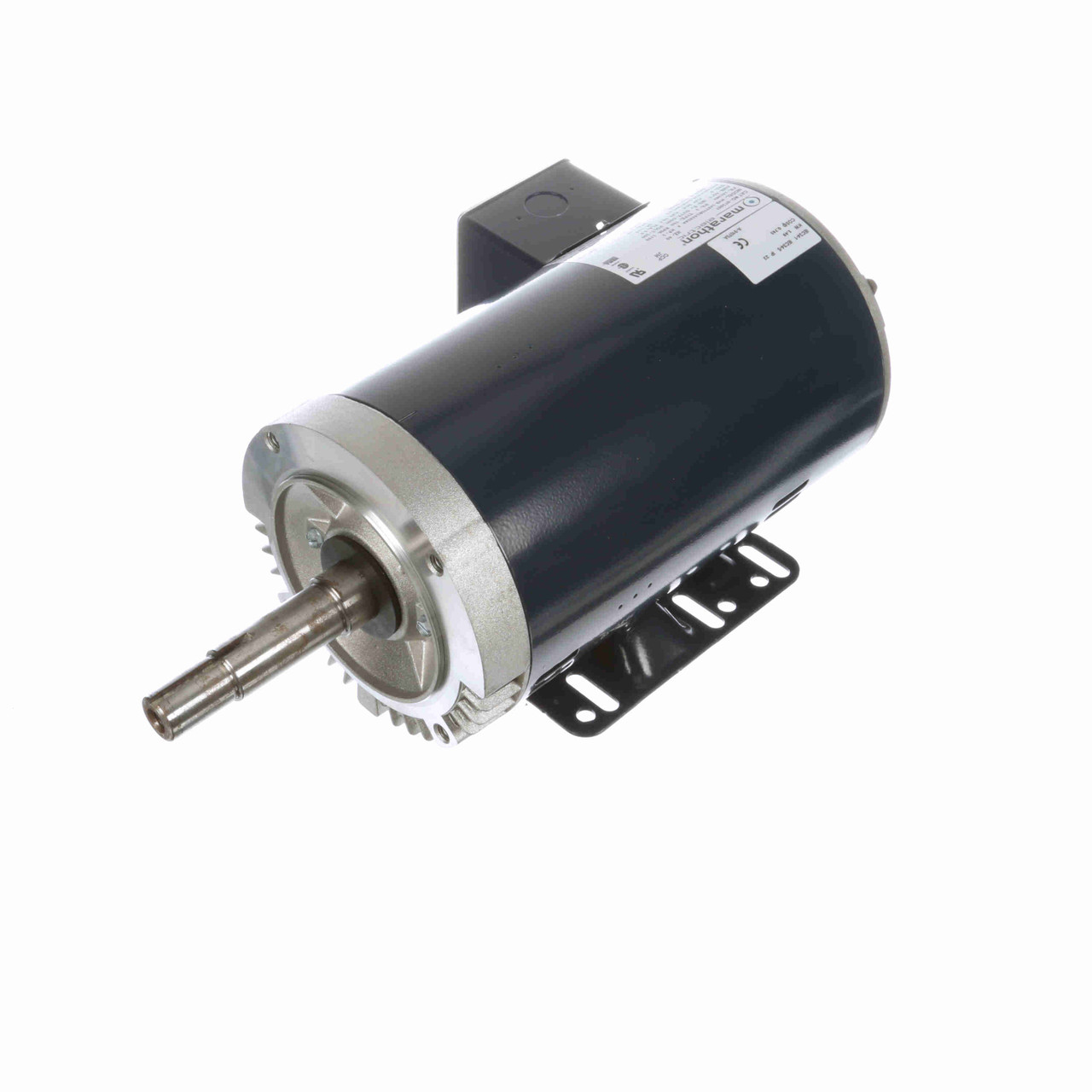

GT2007, 2 Hp, 1800 Rpm, 145JM FR, 200 Vac, 3 PH, Dripproof, C-Face with Base, Close-Coupled Pump, JMV, NEMA Premium Motor, 145TTDR16335

GT2007, 2 Hp, 1800 Rpm, 145JM FR, 200 Vac, 3 PH, Dripproof, C-Face with Base, Close-Coupled Pump, JMV, NEMA Premium Motor, 145TTDR16335

$547.20
(No reviews yet) Write a Review
SKU:
GT2007
Output HP:
2 Hp
Output KW:
1.5 kW
Voltage:
200 V
Phase:
3
Speed (RPM):
1750 rpm
Frame Size:
145JM
Mounting:
C-Face with Base
Enclosure:
Drip Proof
Product Drawings1:
GT2007.pdf
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 2 Hp
Output KW: 1.5 kW Voltage: 200 V
Speed: 1750 rpm Service Factor: 1.15
Frame: 145JM Enclosure: Drip Proof
Thermal Protection: No Protection Efficiency: 86.5 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 6.9 A Power Factor: 74.5
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: N
Drive End Bearing Size: 6206 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 22
Number of Speeds: 1
!
