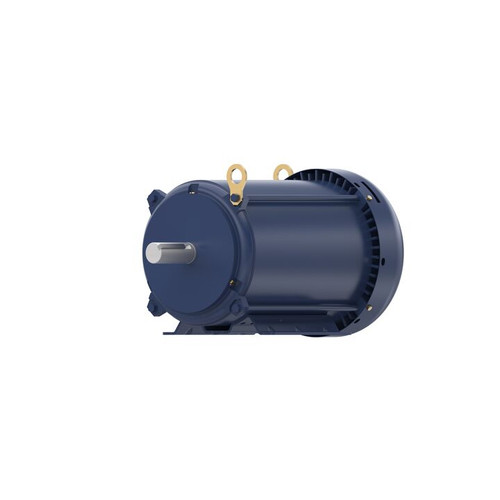

GT1516, 7.50 & 5 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 213T Frame, TEFC, Globetrotter® General Purpose Motor, 213TTFBD6027

GT1516, 7.50 & 5 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 213T Frame, TEFC, Globetrotter® General Purpose Motor, 213TTFBD6027

$731.39
(No reviews yet) Write a Review
SKU:
GT1516
Output HP:
7.5 Hp
Output KW:
5.6 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1768 rpm
Frame Size:
213T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
GT1516.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 7.50 & 5 Hp
Output KW: 5.6 & 3.7 kW Voltage: 230/460 & 190/380 V
Speed: 1768 & 1475 rpm Service Factor: 1.15 & 1.15
Frame: 213T Thermal Protection: No Protection
Efficiency: 91.7 & 90.8 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 19/9.5 & 16.2/8.1 A
Power Factor: 79.3 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: H Drive End Bearing Size: 6307
Opp Drive End Bearing Size: 6206 Enclosure: Totally Enclosed Fan Cooled
UL: Listed CSA: Y
CE: Y IP Code: 43
Number of Speeds: 1 Hazardous Location: DIVISION 2 T2B



!
