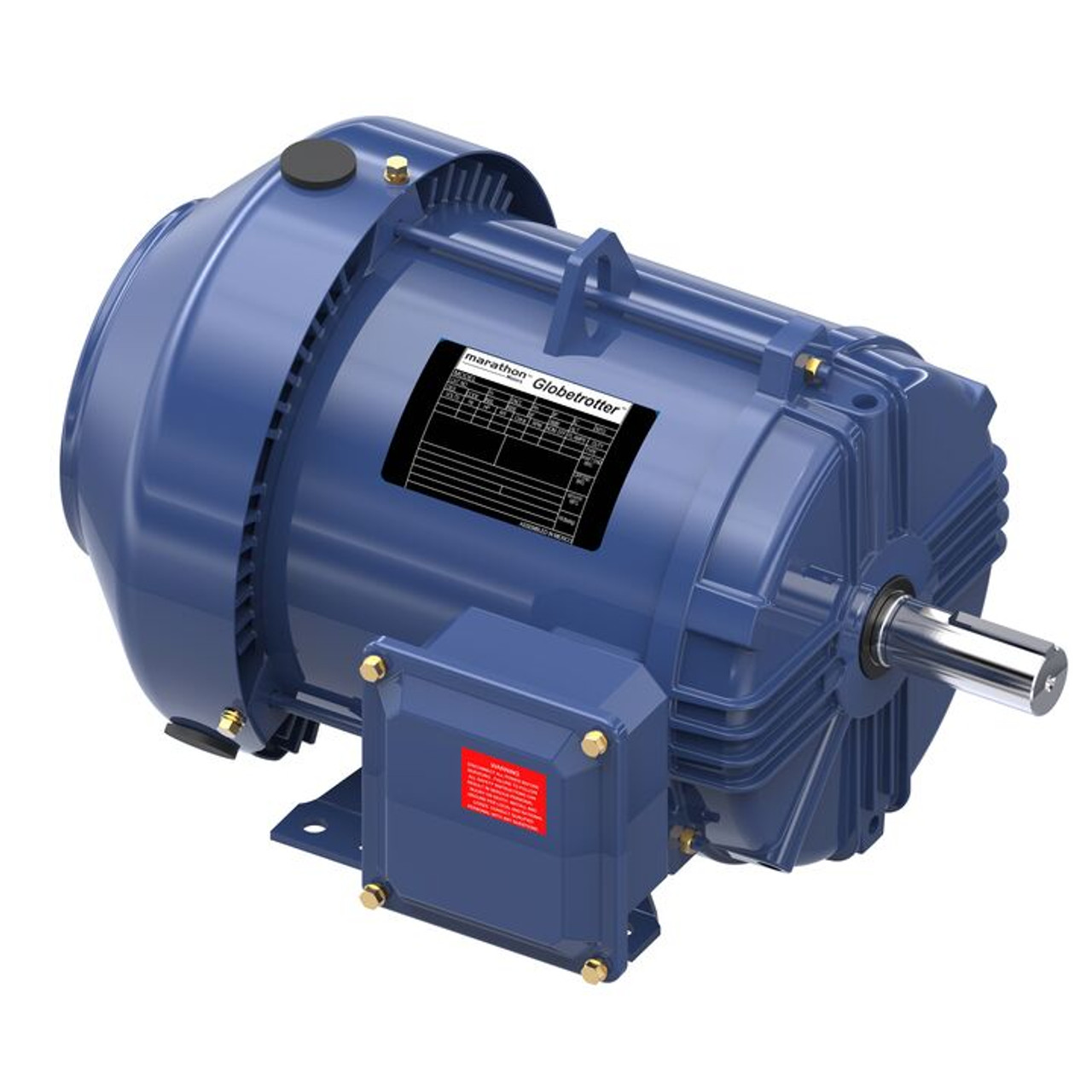

GT1513, 5 Hp, 1800 Rpm, 184T FR, 230/460 Vac, 3 PH, TEFC, Foot Mounted, General Purpose Motor, 184TTFBD6027BA

GT1513, 5 Hp, 1800 Rpm, 184T FR, 230/460 Vac, 3 PH, TEFC, Foot Mounted, General Purpose Motor, 184TTFBD6027BA

$518.50
(No reviews yet) Write a Review
SKU:
GT1513
Output HP:
55 Hp
Output KW:
3.7 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1765rpm
Frame Size:
184T
Mounting:
Foot Mounted
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
GT1513.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications



Phase 3 Output HP 5 & 3 Hp
Output KW 3.7 & 2.2 kW Voltage 230/460 & 190/380 V
Speed 1765 & 1462 rpm Service Factor 1.15 & 1.15
Frame 184T Thermal Protection No Protection
Efficiency 89.5 & 86.5 % Ambient Temperature 40 °C
Frequency 60 & 50 Hz Current 13.2/6.6 & 10.2/5.1 A
Power Factor 80 Duty Continuous
Insulation Class F Design Code A
KVA Code K Drive End Bearing Size 6206
Opp Drive End Bearing Size 6205 Enclosure Totally Enclosed Fan Cooled
UL Listed CSA Y
CE Y IP Code 43
Number of Speeds 1 Hazardous Location DIVISION 2 T2B
!
