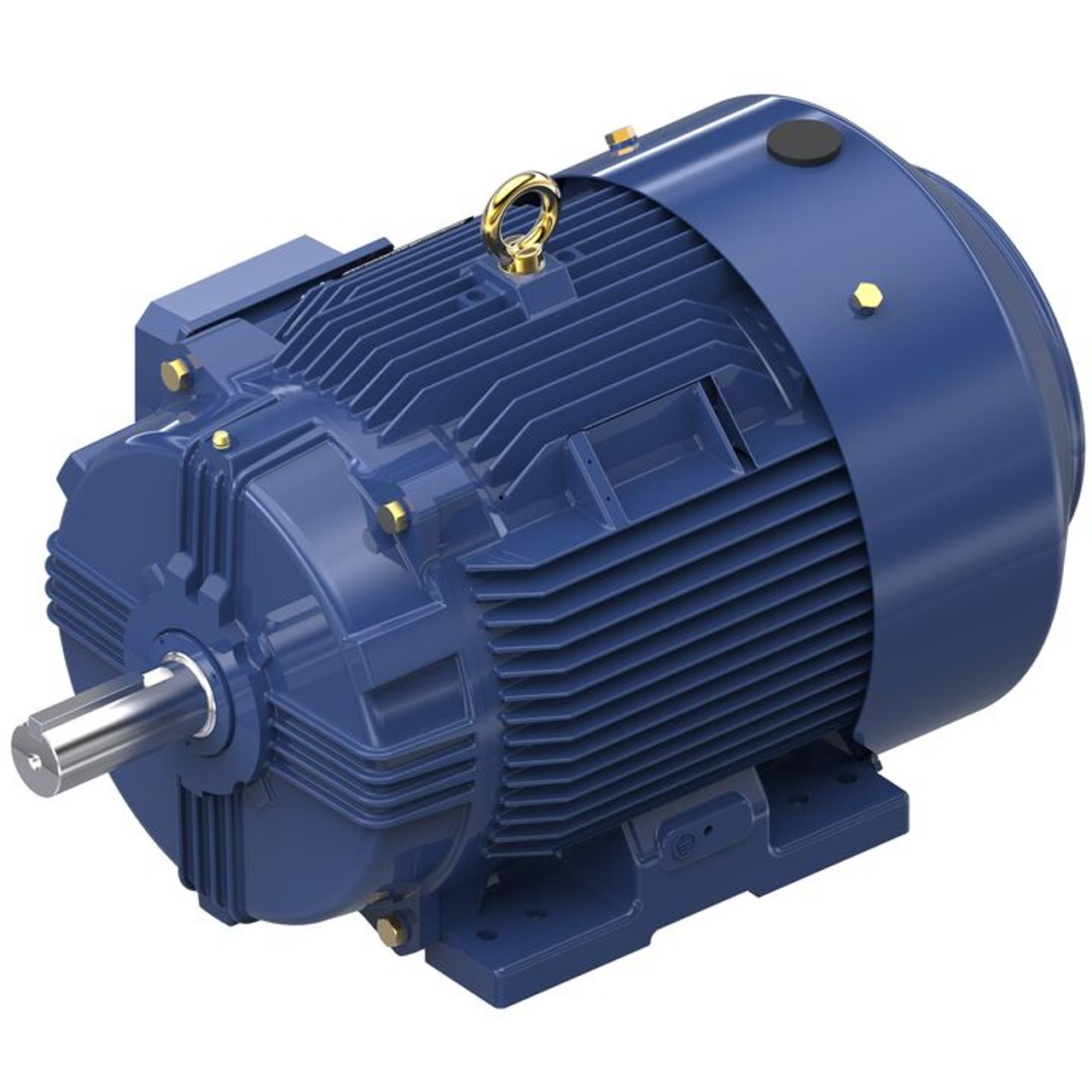

GT10115, 15 & 10 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 900 & 750 RPM, 286T Frame, TEFC, Globetrotter® General Purpose Motor, 286TTFCD6106

GT10115, 15 & 10 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 900 & 750 RPM, 286T Frame, TEFC, Globetrotter® General Purpose Motor, 286TTFCD6106

$3,487.37
(No reviews yet) Write a Review
SKU:
GT10115
Output HP:
15 Hp
Output KW:
11.2 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
875 rpm
Frame Size:
286T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
GT10115.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 15 & 10 Hp
Output KW: 11.2 & 7.5 kW Voltage: 230/460 & 190/380 V
Speed: 875 & 730 rpm Service Factor: 1.15 & 1.15
Frame: 286T Thermal Protection: No Protection
Efficiency: 89.5 & 89.6 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 40/20 & 33.5/16.8 A
Power Factor: 77 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: H Drive End Bearing Size: 6311
Opp Drive End Bearing Size: 6211 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 55
Number of Speeds: 1



!
