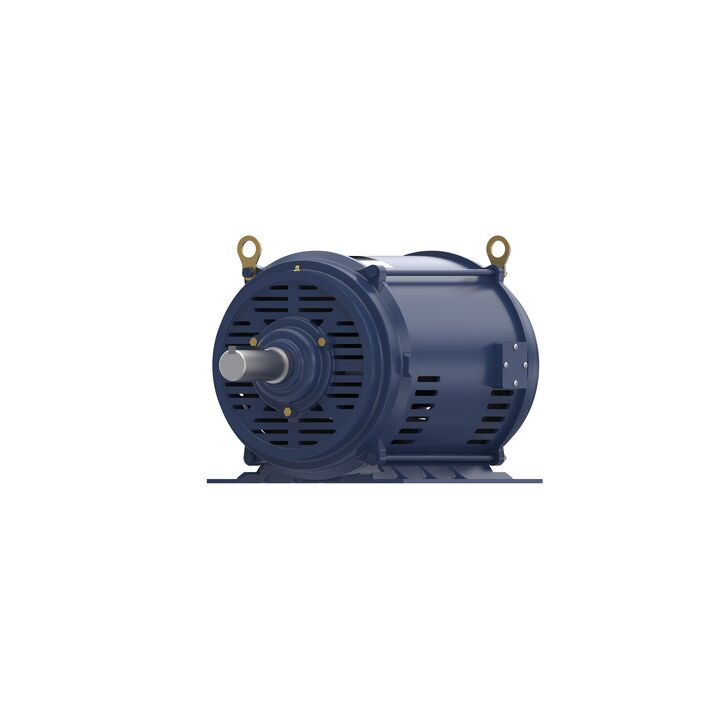

GT0867, 30 HP, 3 Ph, 60 Hz, 200 V, 1800 RPM, 286T Frame, DP, Globetrotter퉌¬ General Purpose Motor, 286TTDBD6039

GT0867, 30 HP, 3 Ph, 60 Hz, 200 V, 1800 RPM, 286T Frame, DP, Globetrotter퉌¬ General Purpose Motor, 286TTDBD6039

Marathon Electric

$2,292.18
(No reviews yet) Write a Review
SKU:
GT0867
Output HP:
30 Hp
Output KW:
22.4 kW
Voltage:
200 V
Phase:
3
Speed (RPM):
1775 rpm
Frame Size:
286T
Mounting:
Rigid Base
Enclosure:
Drip Proof
Product Drawings1:
GT0867.pdf
Manufacture:
Marathon
MAP Policy:
Yes
Adding to cart… The item has been added

Add to Cart for Discount

Nameplate Specifications

Phase: 3 Output HP: 30 Hp
Output KW: 22.4 kW Voltage: 200 V
Speed: 1775 rpm Service Factor: 1.15
Frame: 286T Thermal Protection: No Protection
Efficiency: 94.1 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 84 A
Power Factor: 82 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6311
Opp Drive End Bearing Size: 6210 Enclosure: Drip Proof
UL: Recognized CSA: Y
CE: Y IP Code: 22
Number of Speeds: 1



!
