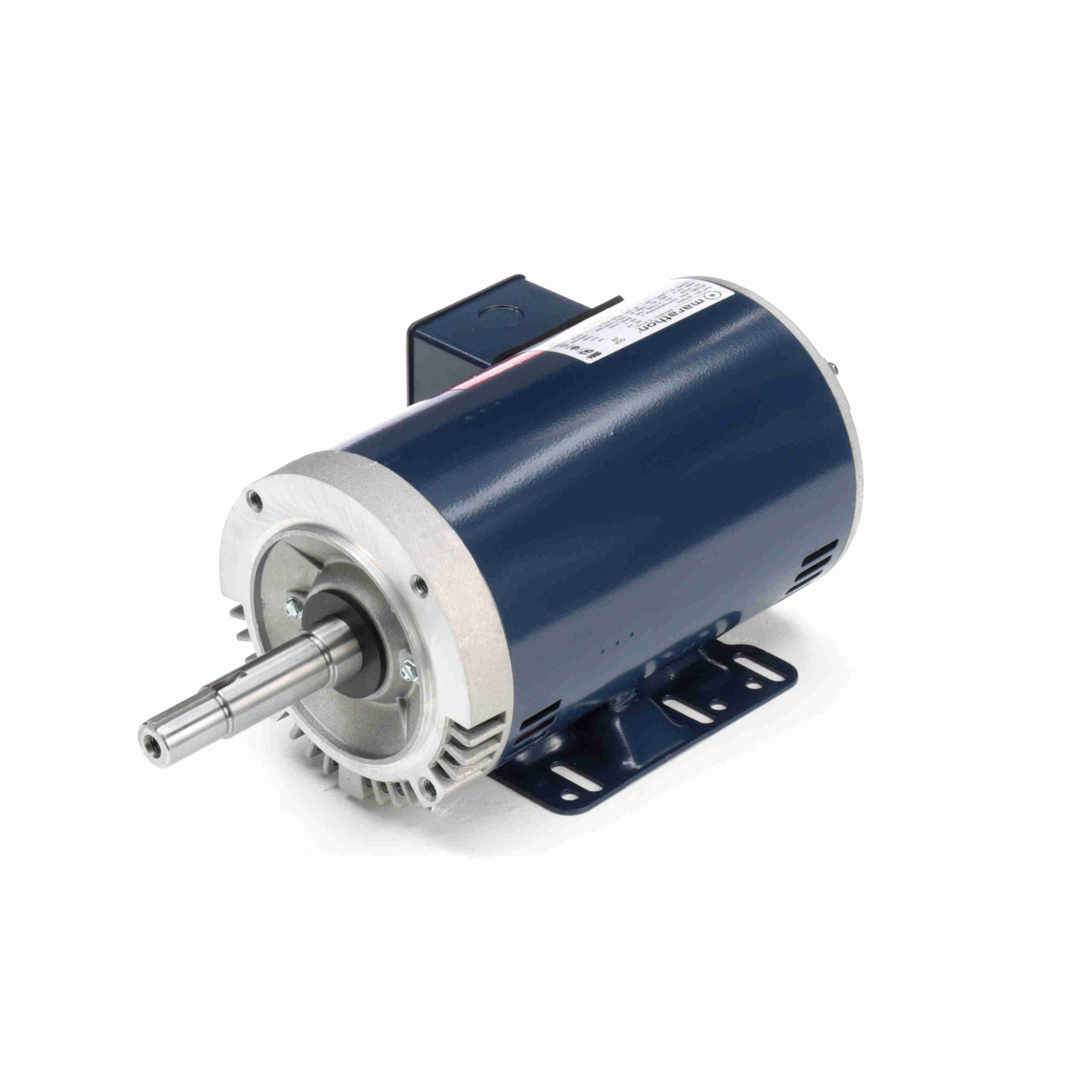

GT0401, 1 Hp, 1800 Rpm, 143JM FR, 230/460 Vac, 3 PH, Dripproof, C-Face with Base, Close-Coupled Pump, JM, NEMA Premium Motor, 143TTDR6030

GT0401, 1 Hp, 1800 Rpm, 143JM FR, 230/460 Vac, 3 PH, Dripproof, C-Face with Base, Close-Coupled Pump, JM, NEMA Premium Motor, 143TTDR6030

$443.20
(No reviews yet) Write a Review
SKU:
GT0401
Output HP:
1 & 0.75 Hp
Output KW:
0.75 & 0.56 kW
Voltage:
230/460 & 190/380 V
Phase:
3
Speed (RPM):
1760 & 1460rpm
Frame Size:
143JM
Mounting:
C-face
Enclosure:
Drip Proof
Product Drawings1:
GT0401.pdf
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 1 & 0.75 Hp
Output KW: 0.75 & 0.56 kW Voltage: 230/460 & 190/380 V
Speed: 1760 & 1460 rpm Service Factor: 1.15 & 1.0
Frame: 143JM Enclosure: Drip Proof
Thermal Protection: No Protection Efficiency: 85.5 & 85.3 %
Ambient Temperature: 40 °C Frequency: 60 & 50 Hz
Current: 3/1.5 & 3/1.5 A Power Factor: 71
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: N
Drive End Bearing Size: 6206 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 22
Number of Speeds: 1
!
