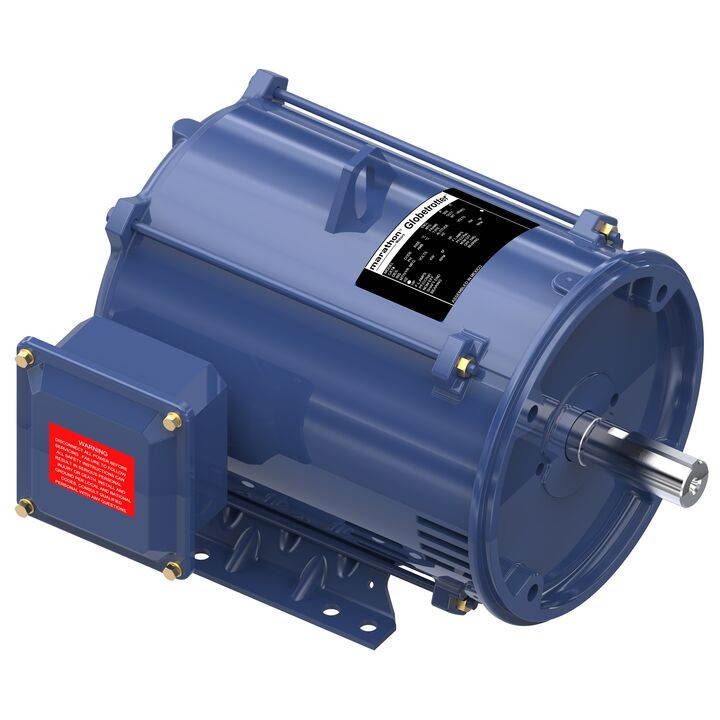

GT0273, 40 & 30 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 324TC Frame, DP, Globetrotter® General Purpose Motor, 324TTDBD6028

GT0273, 40 & 30 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 324TC Frame, DP, Globetrotter® General Purpose Motor, 324TTDBD6028

$2,591.28
(No reviews yet) Write a Review
SKU:
GT0273
Output HP:
40 Hp
Output KW:
30 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1780 rpm
Frame Size:
324TC
Mounting:
Rigid Base
Enclosure:
Drip Proof
Product Drawings1:
GT0273.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 40 & 30 Hp
Output KW: 30.0 & 22.4 kW Voltage: 230/460 & 190/380 V
Speed: 1780 & 1482 rpm Service Factor: 1.15 & 1.15
Frame: 324TC Thermal Protection: No Protection
Efficiency: 94.1 & 93.6 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 95.5/47.5 & 87.5/43.5 A
Power Factor: 83.5 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6312
Opp Drive End Bearing Size: 6311 Enclosure: Drip Proof
UL: Recognized CSA: Y
CE: Y IP Code: 22
Number of Speeds: 1



!
