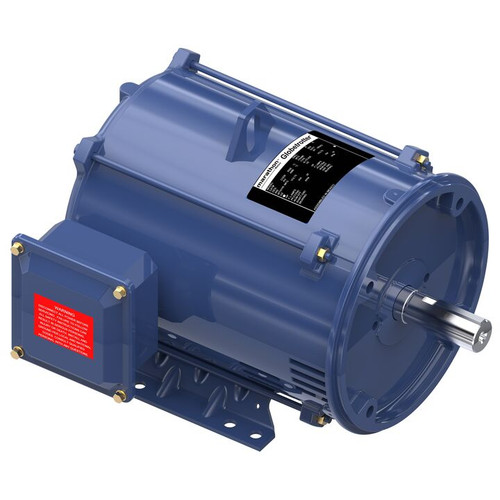

GT0264, 25 & 20 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 256TC Frame, DP, Globetrotter퉌¬ General Purpose Motor, 256TTDBD6003

GT0264, 25 & 20 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 256TC Frame, DP, Globetrotter퉌¬ General Purpose Motor, 256TTDBD6003

Marathon Electric

$1,737.42
(No reviews yet) Write a Review
SKU:
GT0264
Output HP:
25 Hp
Output KW:
18.7 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
3556 rpm
Frame Size:
256TC
Mounting:
Rigid Base
Enclosure:
Drip Proof
Product Drawings1:
GT0264.pdf
Manufacture:
Marathon
MAP Policy:
Yes
Adding to cart… The item has been added

Add to Cart for Discount

Nameplate Specifications

Phase: 3 Output HP: 25 & 20 Hp
Output KW: 18.7 & 14.9 kW Voltage: 230/460 & 190/380 V
Speed: 3556 & 2955 rpm Service Factor: 1.15 & 1.15
Frame: 256TC Thermal Protection: No Protection
Efficiency: 91.7 & 91.4 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 59.5/29.7 & 58/29 A
Power Factor: 86 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6209
Opp Drive End Bearing Size: 6208 Enclosure: Drip Proof
UL: Recognized CSA: Y
CE: Y IP Code: 22
Number of Speeds: 1



!
